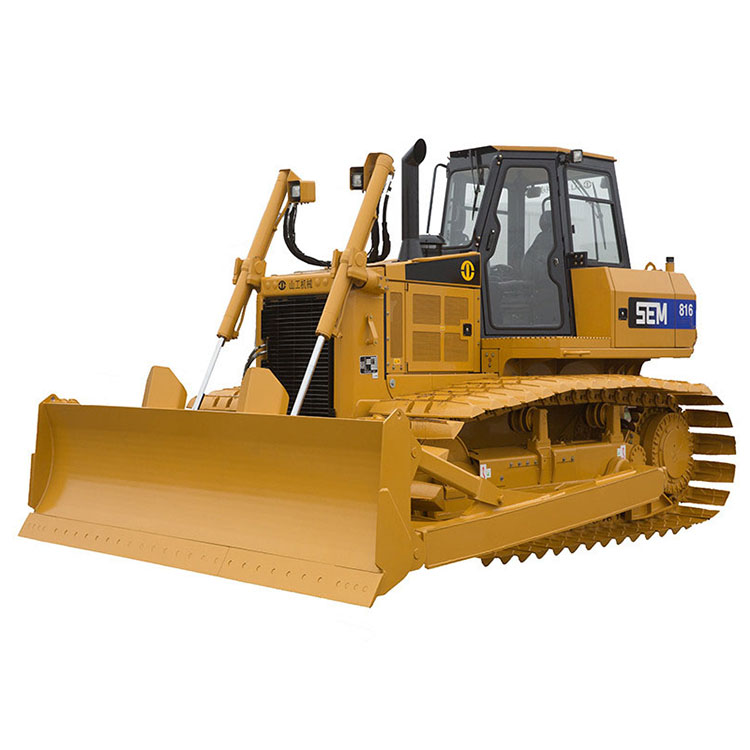

160 Hp Used Bulldozer
As a heavy-duty construction machinery, 160 Hp Used Bulldozer are one of the essential tools in the construction process. Quan Yu follows the principle of assured quality and series price and are happy to serve you.
Send Inquiry
Product Description
High-quality 160 Hp Used Bulldozer's main function is to level and push materials such as soil, gravel, sand, stones, etc. for road construction, land consolidation, and land improvement.
In addition, the price of second-hand bulldozers provided by 160 Hp Used Bulldozer is relatively low.
Compared to the price of new machinery, the price of second-hand bulldozers is usually more affordable.
For startups or individual construction workers, purchasing the 160 Hp Used Bulldozer is a more economical and reasonable choice.
Product Parameter
|
XCMG TY160 BULLDOZER SPECIFICATIONS |
||||
|
ENGINE |
||||
|
Model |
Weichai WD10G178E25; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel |
|||
|
Rated power |
135kw /160hp |
|||
|
Number of cylinders |
6—126 x 130 mm (bore x stroke) |
|||
|
Piston displacement |
9.7L |
|||
|
Maximum torque |
830N.m@1200rpm |
|||
|
POWER TRANSMISSION SYSTEM |
||||
|
Torque converter |
3-element, 1 stage, 1 phase |
|||
|
Transmission |
Planetary type, multi-late clutch, forced lubrication |
|||
|
Main drive |
Spiral bevel gear, single-stage speed reduction, splash lubrication |
|||
|
Steering clutch |
Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
|||
|
Steering brake |
Wet, floating, direct on-off hydraulic inter-linking operation |
|||
|
Final drive |
2-stage speed reduction of spur gear, splash lubrication |
|||
|
TRAVEL SPEED |
||||
|
Gear |
1st |
2nd |
3rd |
|
|
Forward |
0-3.1km/h |
0-5.47km/h |
0-9.07km/h |
|
|
Reverse |
0-4.03km/h |
0-7.12km/h |
0-11.8km/h |
|
|
UNDERCARRIAGE SYSTEM |
||||
|
Type |
Eight-beam swing,balanced beam suspension structure |
|||
|
Carrier rollers(each side) |
2 each side |
|||
|
Track rollers(each side) |
6 each side |
|||
|
Width of track shoes |
510mm |
|||
|
Grouser height |
60mm |
|||
|
Track gauge |
1880mm |
|||
|
HYDRAULIC SYSTEM |
||||
|
Maximum pressure |
13.7Mpa |
|||
|
Pump type |
Gear pump |
|||
|
Discharge |
250L/min |
|||
|
Bore of working cylinder * no |
110mm * 2 140mm*1 |
|||
|
BLADE |
||||
|
Blade type |
Straight tilt ( STANDARD ) |
|||
|
Dozing capacity |
3.9m3 |
|||
|
Blade width |
3416mm |
|||
|
Blade height |
1168mm |
|||
|
Maximum drop below ground |
545mm |
|||
|
Maximum tilt adjustment |
>860 mm |
|||
|
Weight of blade |
1620 kg |
|||
|
DIMENSIONS |
||||
|
Dimension |
6215x37380x3150 ( with ripper ) |
|||
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|||
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
||||
The 160 Hp Used Bulldozer which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design.
Technical Characteristics:
* The appearance of the 160 Hp Used Bulldozer is based on optimization design.
* High engine power reserve, strong torque output, low fuel consumption, reliable controls.
* Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
* Features high efficiency and capacity.
* Improve more stability, prolong the lifetime.
* New blade of the 160 Hp Used Bulldozer is more durable and capacious.
* Alarming & monitoring system is reliable.
* Reliable manual- operated spool valve and external mounted valve for easy maintenance.
All Used Bulldozer including 160 Hp Used Bulldozer have a service life ranging from 2010 to 2023, and buyers are welcome to choose.
