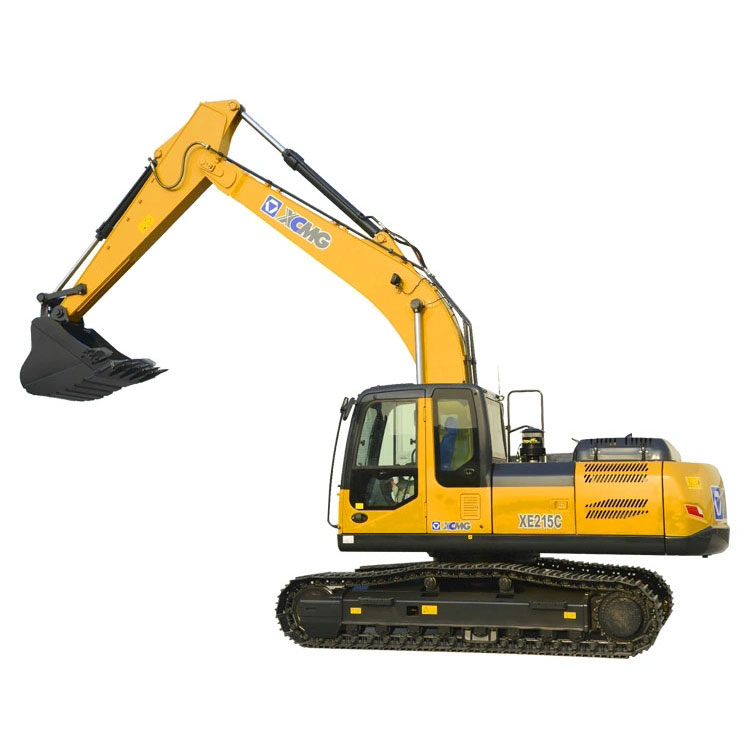

20 Tons Excavator

The Quan Yu's high-quality 20 tons excavator is equipped with a high-power engine and advanced hydraulic system, which ensures high work efficiency and sufficient power to cope with various work scenarios.

Send Inquiry

Product Description

Quan Yu's high-quality 20 Tons Excavator is has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.

It suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.

Product Parameter

Operating weight		Kg	21450
Bucket capacity		m³	1
Engine	Model	/	ISUZU BB-6BG1TRP
	No.of cylinders	/	6
	Rated power/swing speed	kw/rpm	106.5/1950
	Torque/swing speed	N.m	551/1600
	Displacement	L	6.494
Main performance	Travel speed（H/L)	km/h	5.5/3.3
	Rotary speed	r/min	13.3
	Gradeability	°	≤35
	Ground pressure	kN	45.5
	Bucket digging force	kN	138
	Arm digging force	kN	103
	Max. Traction force	kN	184
Hydraulic System	Main pump	/	2 plunger pumps
	Rated flow	L/min	2X206
	Main safety valve pressure	MPa	31.5/34.3
	Pressure of traveling system	MPa	34.3
	Pressure of swing system	MPa	28
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine oil capacity	L	25
Appearance size	Total length	mm	9525
	Total width	mm	2990
	Total height	mm	3000
	Width of platform	mm	2710
	Length of crawler	mm	4270
	Total width of chassis	mm	2990
	Width of crawler	mm	600
	Wheel base of crawler	mm	3462
	Track gauge	mm	2390
	Ground clearance of counterweight	mm	1050
Working scope	Max. digging height	mm	9640
	Max. dumping height	mm	6800
	Max. digging depth	mm	6655
	Max. digging depth at the range of level 8 feet	mm	6470
	Max.vertical digging depth	mm	5695
	Max. digging radius	mm	9925
	Min. swing radius	mm	3530
Standard Congratulation	Boom Length	mm	5680
	Arm Length	mm	2910
	Bucket Capacity	m³	1
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
