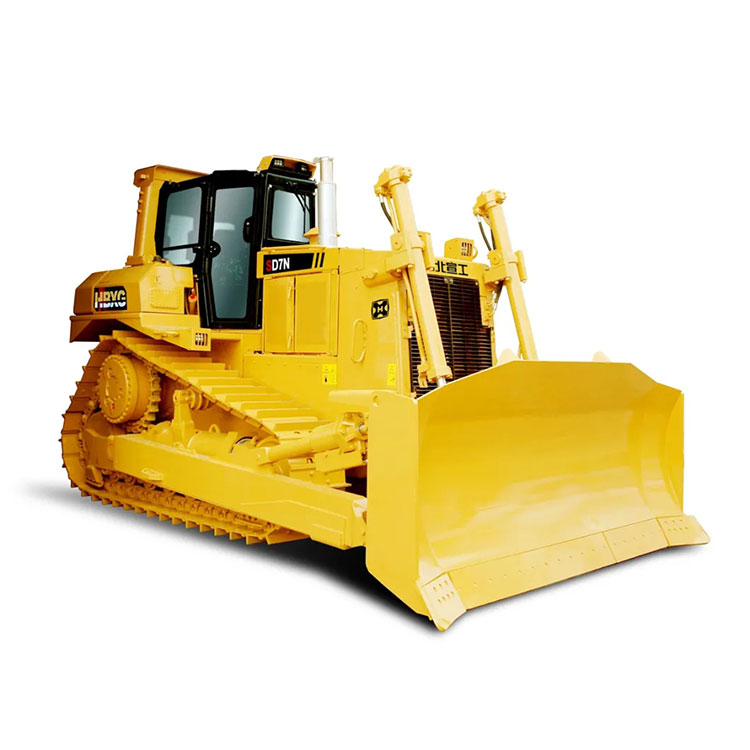

220 Hp Bulldozer
The engine power of the Quan Yu's high-quality 220 Hp Bulldozer is relatively high, which can provide sufficient power, making it have high work efficiency and bearing capacity. Widely used in road construction, maintenance and other fields.
Send Inquiry
Product Description
Quan Yu's high-quality 220 Hp Bulldozer is a large horsepower, advanced technology bulldozer with a Cummins 855C engine delivering high torque yet low fuel consumption. An exhaust turbocharger ensures uninterrupted performance at altitudes up to 3200m. Hydraulic drive and control technology deliver reliable performance and easy control.
A bulldozer is an earthwork engineering machinery that can excavate, transport, and dispose of soil and rock, and has a wide range of uses in open-pit mines. For example, it is used for constructing waste disposal sites, leveling car waste disposal sites, stacking scattered mineral rocks, leveling work sites, and building sites. It is not only used for auxiliary work, but also for main mining work. For example, the stripping and mining of sand deposits, the traction and assistance of excavators and rock plows, and the use of other earthwork machinery to reduce the height of stripping steps in the absence of transportation mining methods.
Product Parameter
|
SHANTUI SD22 BULLDOZER SPECIFICATIONS |
|||
|
ENGINE |
|||
|
Model |
Cummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel |
||
|
Rated power |
162kw / 220hp |
||
|
Number of cylinders |
6—139.7 x 152.4 mm (bore x stroke) |
||
|
Piston displacement |
14.01L |
||
|
Min. Fuel consumption |
205g/kW.h |
||
|
Maximum torque |
1030N.m@1300rpm |
||
|
POWER TRANSMISSION SYSTEM |
|||
|
Torque converter |
3-element, 1 stage, 1 phase |
||
|
Transmission |
Plane tary type, power-shift, forced lubrication |
||
|
Main drive |
Spiral bevel gear, single-stage speed reduction, splash lubrication |
||
|
Steering clutch |
Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
||
|
Steering brake |
Wet, floating, direct on-off hydraulic inter-linking operation |
||
|
Final drive |
2-stage speed reduction of spur gear, splash lubrication |
||
|
TRAVEL SPEED |
|||
|
Gear |
1st |
2nd |
3rd |
|
Forward |
0-3.6km/h |
0-6.5km/h |
0-11.2km/h |
|
Reverse |
0-4.3km/h |
0-7.7km/h |
0-13.2km/h |
|
UNDERCARRIAGE SYSTEM |
|||
|
Type |
Swing type of sprayed beam, suspended structure of equalizer bar |
||
|
Carrier rollers |
2 each side |
||
|
Track rollers |
6 each side |
||
|
Track type |
Assembled, single-grouser |
||
|
Width of track shoes |
560mm |
||
|
Pitch |
216mm |
||
|
HYDRAULIC SYSTEM+ |
|||
|
Maximum pressure |
14Mpa |
||
|
Pump type |
Gear pump |
||
|
Discharge |
262L/min |
||
|
Bore of working cylinder * no |
120mm * 2 |
||
|
BLADE |
|||
|
Blade type |
Straight tilt ( STANDARD ) |
Angle |
U blade |
|
Dozing capacity |
6.4m3 |
4.7m3 |
7.5m3 |
|
Efficiency( theoretical value 40m ) |
330m3/h |
245m3/h |
365m3/h |
|
Blade width |
3725mm |
4365mm |
3725mm |
|
Blade height |
1315mm |
1055mm |
1374mm |
|
Maximum drop below ground |
538mm |
535mm |
540mm |
|
Maximum tilt adjustment |
>735 mm |
>500mm |
>755mm |
|
Weight of blade |
2830 kg |
3254 kg |
3419 kg |
|
RIPPER ( OPTIONAL ) |
|||
|
Max digging depth of 3 shank ripper |
666mm |
Maximum digging depth of single ripper |
695 mm |
|
Max lift above ground |
555mm |
Maximum lift above ground |
515 mm |
|
Weight of 3 shank ripper |
2495kg |
Weight of single ripper |
2453 kg |
|
DIMENSIONS |
|||
|
Dimension |
6790x3725x3332 ( without ripper ) |
||
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
||
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
|||
Product discription
The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 175kW, featuring high torque reserve coefficient.
The radially sealed intake system is applied to effectively prolong the engine life.
Based on the SD32, the SD32W rock bulldozer is specially designed for operation in tough working conditions with hard rock and frozen earth. The SD32W is equipped with a hydraulic drive system with hydraulic control technology, and an advanced structure, providing reliable performance and convenient and flexible operation. It also has a rock-type track and blade, allowing the SD32W to adapt to the heavy condition necessary when working with hard rock and frozen earth.
SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.
