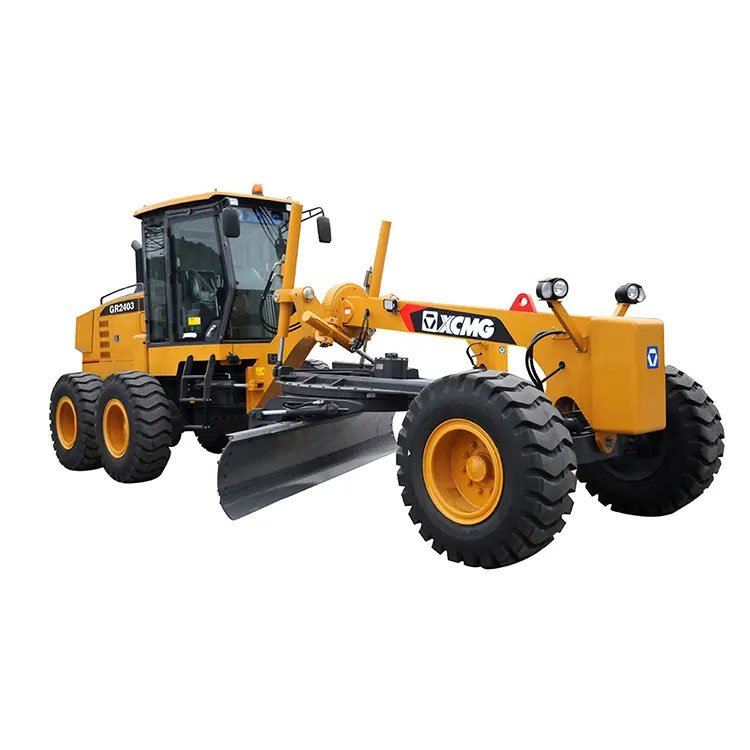

220 Hp Used Motor Grader
  • 220 Hp Used Motor Grader 220 Hp Used Motor Grader

220 Hp Used Motor Grader

One notable advantage of the Quan Yu's high-quality 220 Hp Used Motor Grader is its versatility in coping with diverse types of land and engineering requirements. Whether tasked with leveling construction land, farmland, or participating in highway engineering, this second-hand grader can adapt to various working functions. This adaptability is further enhanced by the ability to replace different devices and accessories, allowing the grader to meet specific needs for different projects.

Send Inquiry

Product Description

High-quality 220 Hp Used Motor Grader offered by Quan Yu have efficient working capabilities.

It can quickly and effectively complete land leveling tasks, improving work efficiency.

Compared to traditional manual leveling, second-hand graders can save a lot of time and labor costs.

220 Hp Used Motor Grader can cover a large area of work in a short period of time, reduce the construction period, and ensure that the project is completed on time.

220 Hp Used Motor Grader can cope with various types of land and engineering requirements.

Whether it is leveling construction land, farmland, or highway engineering, second-hand graders can adapt and achieve various working functions by replacing different devices and accessories.


Product Parameter

SDLG G9220 MOTOR GRADER SPECIFICATIONS

G9220, a high speed, high efficient and high precision multi purpose product developed by SDLG introducing the VOLVO advanced technologies, is applied to ground leveling, ditching , slope scrapping, bulldozing , snow plowing, loosening, compacting , material distribution, mixing and other similar operations, 220 Hp Used Motor Grader is widely used in construction of highways, airports, national defense project, mines, roads and water conservancy facilities and farmland improvement.

OVERALL DIMENSION

Dimension

9235x2710x3240mm

Min ground clearance of front axle

610mm

Ground clearance of rear axle

430mm

Wheel tread

2260mm

Wheelbase

6480mm

Center distance of balance box

1538mm

OVERALL PARAMETER

Overall working weight

16500kg

Max inclination angle of front wheel

±18°

Max swinging angle of front axle

±16°

Max steering angle of front wheel

±50°

Steering angle of articulated frame

±23°

Cutter diameter

1626mm

Cutter size(length*height*thickness)

4267x610x25mm

14ft

Swing angle of blade

360°

Min turning radius

7.6m

Lift height of blade

445mm

Cutting depth of blade

787mm

Blade cutting angle

Forward 47°/backward 5°

Blade side shift

Left 673mm / right 673mm

Max tractive force

87kN

Max speed ( forward/reverse )

39/25.5 km/h

--

--

ENGINE

MODEL

DEUTZ BF6M1013ECP

Type

Inline, water cooled,four-stroke ,,direct injection

Rated power/speed

165kW/2100r/min

Engine displacement

7146ml

Cylinder bore/stroke

108/130mm

Min fuel consume ratio

210g/Kw.h

Max torque

819Nm

Emission standard

Euro2

TRANSMISSION SYSTEM

Transmission type

Fixed shaft power shift

Torque converter

Single stage single phase three element

Gears

Six forward three reverse

Speed at forward gear I

0-5km/h

Speed at forward gear II

0-9km/h

Speed at forward gear III

0-12km/h

Speed at forward gear IV

0-20.5km/h

Speed at forward gear V

0-25.5km/h

Speed at forward gear VI

0-39km/h

Speed at reverse gear I

0-5km/h

Speed at reverse gear II

0-12km/h

Speed at reverse gear III

0-25.5km/h

TYRES

Front tyres

17.5-25-16PRTT E-2/L-2

Rear tyres

17.5-25-16PRTT E-2/L-2

HYDRAULIC SYSTEM

Type

Open-type system

System pressure

21Mpa

FILL CAPACITY

Fuel

300L

Hydraulic oil

132L

OPTIONS

Front dozer

Optional

Rear ripper

Optional

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice



220 Hp Used Motor Grader is equipped with electronic controlled Deutz engine with variable power and three power curves, which matches with ZF transmission perfectly and can select corresponding power mode as per load, achieving optimum performance and fuel efficiency, energy saving and high efficiency.


The whole machine is designed with automatic cruise control function which enables the engine to run at any set speed, reducing the work intensity of operator.


High-pressure gear pump and import multiple-way valve, as well as dual-pump double circuit constant displacement hydraulic system are applied in the 220 Hp Used Motor Grader, and the overall working system pressure is 21 MPa, ensuring high working efficiency.


No-spin limited slip differential and heavy-duty roller chain drive balance box are provided to enhance the overall tractive force and the flatness of surface operated by the blade.


Pallet type working device driven by double cylinder plus rotating valve is applied by absorbing VOLVO technology, which ensures high driving force and reliability; the blade of the 220 Hp Used Motor Grader can rotate under a load and features high working precision, being a leader in the domestic industry.


Frame structure welded by box beam is of integrated modularized design; the rear agitator and other accessories can be accessed conveniently for removal and installation, and are independent of the transmission system such that the impact load will only be transfered to the rear frame, ensuring high reliability.


The swing frame utilizes lubrication-free and maintenance-free composite bearing featuring small friction coefficient, high impact and wear resistance and strong reliability.


The working device of the 220 Hp Used Motor Grader applies 7-hole linkage mechanism and electro-hydraulic cylinder locking mechanism, ensuring safe and convenient operation.


The cab is equipped with FOPS/ROPS system, and has good sealing performance and high safety and reliability; the front field of vision is clear that front wheels and blade can be seen, facilitating operation and enhancing working precision.


The overall electrical system of the 220 Hp Used Motor Grader applies centralized control, and 3rd-level alarm electronic monitoring system and digitized stepping instrument panel ensure good human-machine interaction and convenient inspection and maintenance.


Auxiliary implements such as front dozer blade, front agitator, intermediate agitator, rear agitator and rear scarification rake are optionally available, and blade floating and automatic leveling system module can be installed.


All Used Motor Grader have a service life ranging from 2010 to 2023, and buyers are welcome to choose.
