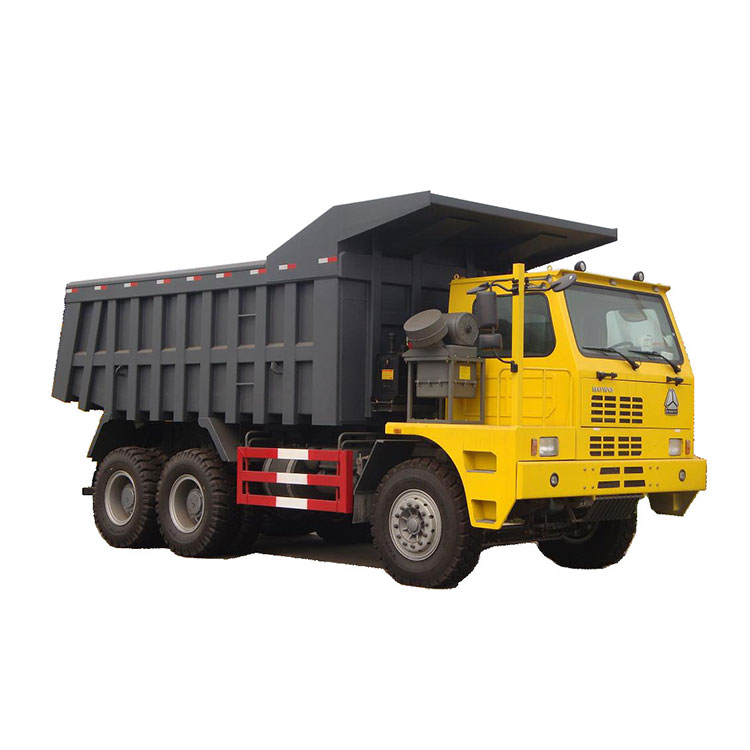

70 Tons Dump Truck

Quan Yu's high-quality 70 tons dump truck With strong load-bearing capacity, can greatly improve transportation efficiency, with fast unloading speed and flexible control system.

Send Inquiry

Product Description

Quan Yu's high-quality 70 Tons Dump Truck often work in conjunction with excavators, loaders, belt conveyors and other construction machinery in civil engineering to form a loading, transportation, and unloading production line for the loading, unloading, and transportation of earthwork, sand, and bulk materials.

purpose：

Agricultural dump trucks, mining dump trucks, garbage dump trucks, coal transportation dump trucks, construction machinery dump trucks, and sludge dump trucks.

1. HOWO trucks with the engine are all equipped with heating and air conditioning which are electrically operated and automatically control temperature. This is the configuration for high-end sedan.

2. The sleeper of our product is designed according to the body shape of European and American people. The width reaches 600mm. The aluminum alloy frame has light weight and good rigidity. A wire mesh structure is internally installed. Compared with other products in the domestic market, our product can more effectively relieve fatigue.

Comfort: Sinotruk HOWO brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.

Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.

Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.

Product Parameter

SINOTRUK HOWO 8x4 DUMP TRUCK SPECIFICATIONS
Truck Model		ZZ3317N3867W(Left Hand Drive )
Truck Brand		SINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm		10845×2550×3450
Body		Carriage Internal Dimension:7800x2300x1800 mm Steel thickness of Carriage：Floor:8mm/Side:6mm Hydraulic Lift of Carriage：Front Lift
Approaching angle/ Departure angel (°)		19/17
Overhang (front/rear) (mm)		1500/2295
Wheel base (mm)		1800+3800+1350
Max. Driving speed (km/h)		75
Front axle loading capacity (kg)		2*9000
Rear axle loading capacity(kg)		2*16000
Curb weight (kg)		15780
Gross vehicle weight		41000
Cab Model	SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner.
Engine Model	Model	WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Rated Power(kw/rpm)	273/2200
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃opening begin, Rigid fan
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	Model	SINOTRUK HW19710 transmission ,10 forward and 2 reverse.
Brake system	Service brake	Dual circuit compressed air brake
	Parking Brake (emergency brake)	Spring energy, compressed
Steering system	Model	ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) Option: ZF8098 Right Hand Driving.
Front axle	SINOTRUK 29000kg Front Axle,new 29-ton front axles of equipped with drum brakes.
Rear axle	SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &Tire	Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. Option: 12.00R24 radial tire;13R22.5 tubeless tire;315/80R22.5 tubeless tire.
Electrical system	Electrics Operating voltage	24V,negative grounded
	Starter	24V,7.5 Kw
	Alternator	3-phase,28V,1500 W
	Batteries	2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light. Head lights and rear light mesh protection.
Oil Tank	Square type-300L fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Cargo Boby Technical Character

1. Authentic Materials :domestic and foreign well-known brand steel plate material can be customized thickness. Thickness allowed tolerance range is less than national standards. Various kinds of integrated high strength plate and wear plate cargo body can be customized according to customer demands.

High strength plate or wear plate cargo body can be chosen to realize light weight and reduce kerb weight according to the actual working conditions.

The entire plate floor can improve cargo body’s performance effectively.

2. Wide Diversity: Rectangle type, Bucket type, U type, etc can be chosen.

Rectangle Cargo Body

The rectangle cargo body divides into 3 types, ordinary type, reinforced type and light weight type. This rectangle cargo body with strong bending and torsional abilities can be widely used in bulk cargo transportation. Moreover , it applies to different wheelbase and various kinds of cargo body length chassis.

Oridinary Rectangle Cargo Body

① This cargo body is ordinary structure, which can be divided into standard type and strengthen type according to side plate stiffener.

② It mainly applies to small specific gravity and dumping impact bulk cargo transportation.

③ Unique integral forming side plate designed can improve side plate strength and rust resistance effectively.

Strengthened Type Rectangular Body

① The body is frame type. Floor board, sideboard and front board, with strong bending and torsional ability.

② Mainly used in heavy duty transport, which has high requirement in whole carriage structure strength and rigidity.

Bucket shape body

Bucket shape body is also called mining body, frame type body structure, the frame structure connect floor and sideboard. Front plate reinforcing beam connect with compartment inside, to avoid transformation. The body structure has high strength, rigidity and anti-impact ability, mainly used to transport heavy goods, like big size stones etc.

U type upper body

High strength design use on the upper body, reduced the weight of vehicle, enhanced the bearing capacity, lowered center of gravity height, reduced wheel wear. Compared with the traditional rectangular upper body, there is no dead angle , the uploading cleaner etc. The new design can meet the transportation of bulk cargo , ore and other goods.
