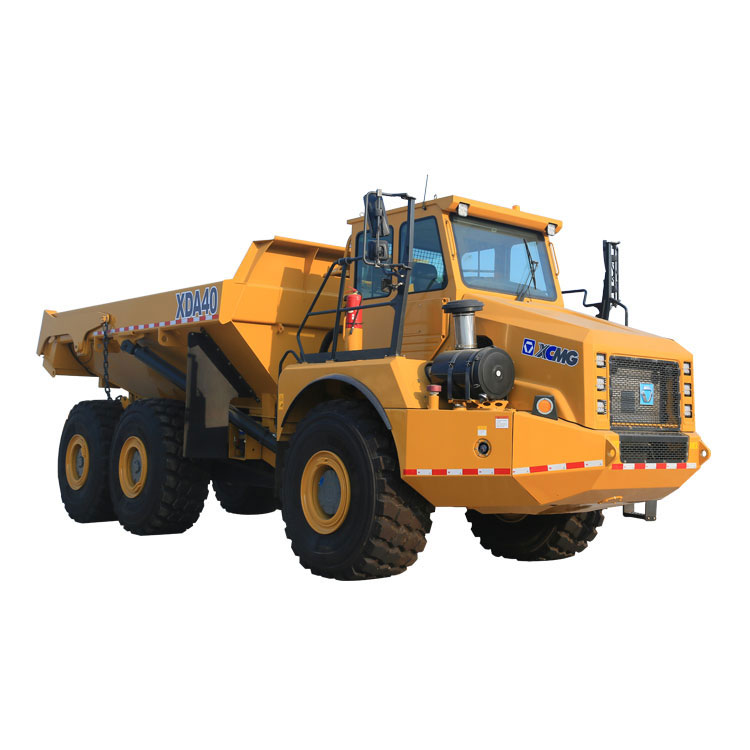

Drive Mining Truck 40 T

Quan Yu's high-quality Drive Mining Truck 40 T is a heavy-duty dump truck used by mines to complete the tasks of rock earthwork stripping and ore transportation. Its working characteristics are short transportation distance, heavy bearing capacity, and commonly used for loading with large electric or hydraulic shovels, traveling back and forth between mining and unloading points.

Product Parameter

Application

Tipper is used in the civil engineering, usually jointly operated with excavators , loaders, belt conveyor and other engineering equipment, constituting a load-transport-unload production line , which finishes earth, sand , powder material loading-transporting work.

Use condition: for coal, sand and gravel, iron ore, grain and other bulk cargo transport and long coat, operation frequency 1-5 times / day, and excavator , loaders conveyor with the job.

Technical advances in SINOTRUK Dump Truck

lThe whole vehicle axle load distribution is resonable to meet the user needs.

lLow gravity center , good discharge stability and vehicle moving.

lOptimization of the structure of the hydraulic lifting system, high work efficiency, the strong lifting ability, the light overall weight, stable and reliable operation.

lMature cargo body, sub frame etc assembly technology, satisfying the user comprehensive and individual choice.

lUnique integral shot line, ring painting line to ensure all products are arranged on overall sanding, painting, achieving finishing coat installation.

Cargo Boby Technical Character

1.Authentic Materials :domestic and foreign well-known brand steel plate material can be customized thickness. Thickness allowed tolerance range is less than national standards. Various kinds of integrated high strength plate and wear plate cargo body can be customized according to customer demands.

High strength plate or wear plate cargo body can be chosen to realize light weight and reduce kerb weight according to the actual working conditions.

The entire plate floor can improve cargo body’s performance effectively.

2.Wide Diversity: Rectangle type, Bucket type, U type, etc can be chosen.

Rectangle Cargo Body

The rectangle cargo body divides into 3 types, ordinary type, reinforced type and light weight type. This rectangle cargo body with strong bending and torsional abilities can be widely used in bulk cargo transportation. Moreover , it applies to different wheelbase and various kinds of cargo body length chassis.

Oridinary Rectangle Cargo Body

① This cargo body is ordinary structure, which can be divided into standard type and strengthen type according to side plate stiffener.

② It mainly applies to small specific gravity and dumping impact bulk cargo transportation.

③ Unique integral forming side plate designed can improve side plate strength and rust resistance effectively.

Strengthened Type Rectangular Body

① The body is frame type. Floor board, sideboard and front board, with strong bending and torsional ability.

② Mainly used in heavy duty transport, which has high requirement in whole carriage structure strength and rigidity.

Bucket shape body

Bucket shape body is also called mining body, frame type body structure, the frame structure connect floor and sideboard. Front plate reinforcing beam connect with compartment inside, to avoid transformation. The body structure has high strength, rigidity and anti-impact ability, mainly used to transport heavy goods, like big size stones etc.

U type upper body

High strength design use on the upper body, reduced the weight of vehicle, enhanced the bearing capacity, lowered center of gravity height, reduced wheel wear. Compared with the traditional rectangular upper body, there is no dead angle , the uploading cleaner etc. The new design can meet the transportation of bulk cargo , ore and other goods.

Boat type upper body

The type combining the characteristic of rectangular type and U type. Wide angle whole bend inside the body, so that the bottom plate connection strength can be improved, the self weight of the truck can be lighted. This type can meet bulk, muck, geotechnical class transportation needs.
