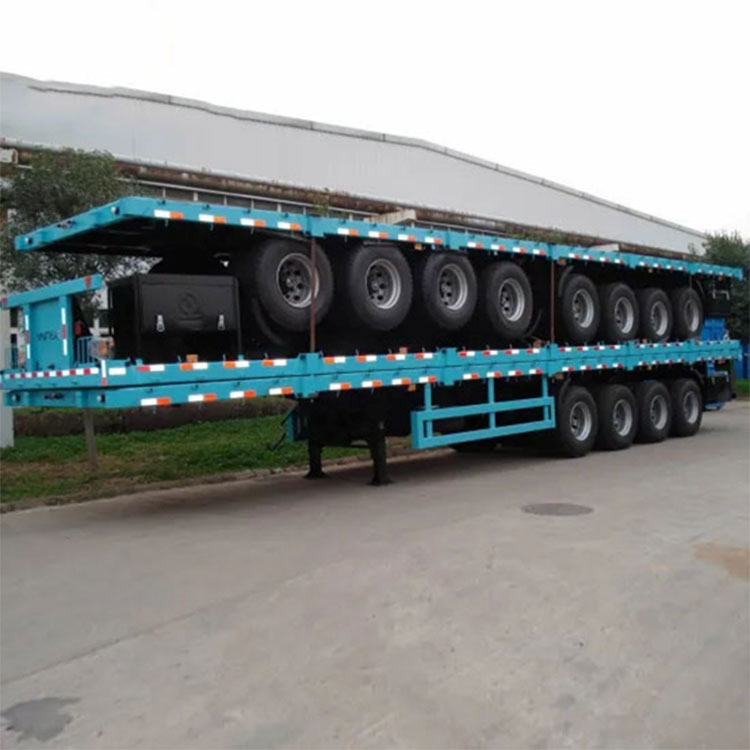

Four Axle Flatbed Semi Trailer 60T

A four axle flatbed semi-trailer of 60T, used for loading oversized and overweight cargo trailers. The basic form of heavy-duty trailers is a single unit flatbed trailer, with common single unit flatbed trailers having 2-7 axes.

Send Inquiry

Product Description

A four axle flatbed semi-trailer of 60T is commonly used to transport heavy vehicles (such as tractors, buses, specialized vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.), and other heavy-duty goods. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high goods and pass overhead obstacles.

Product Parameter

FOUR AXLE CONTAINER SEMI TRAILER SPECIFICATIONS
Tare weight	8000kg
Size	1250025001550mm（1260026501650mm）
Payload	60Ton
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14 mm; Bottom flange 16mm;Middle Flange 8mm;Height 500mm.
Side beam	16# channel steel(Q235)
Cross member	10# channel steel(Q235)
Floor	3mm checkered plate
Front board	Without
Side wall	Without
Axle	FUWA brand 13T *4axles; Front axle liftable function;
Suspension	Front axle with air suspension series ,Rear 3axles leaf spring suspension
Tyre	Traingle brand 12.00R20 *16pcs
Wheel rim	8.5-20 *16pcs
Kingpin	2”/3.5” bolt-in king pin
Landing gear	28Ton manual operating ,heavy duty landing gear
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Without
Twist lock	12units for 1x20ft 2x20ft 1x40ft
Electrical system	Voltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable.
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint;Wax spray.
Accessories	One standard tool box;Two spare tire carrier;One crank;One shaft head wrench.
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Main Features

Container Flatbed Semi Trailers, offer the container trailers to maximize the payload. Our flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.

Our Container flatbed trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

Introduction of production process

A.Steel auto cutting

B.Main beam auto submerged arc welding

C.Chassis reversal ensure every part been welding well

D.Shot blasting for rust cleaning

E.F.Welding by experienced worker

G.Final cleaning welding slag by worker

H.Dust-free painting line

Our flatbed truck semi trailer with multi-function , It's designed to carry long log , tube , 20ft 40ft container or bulk cargo. Our flatbed trailer can be match with SHACMAN , HOWO , FAW , BENZ , VOLVO , HINO , MAN and other brand tractor truck well. In this case , our truck semi trailer makes the transportation much more flexible .
