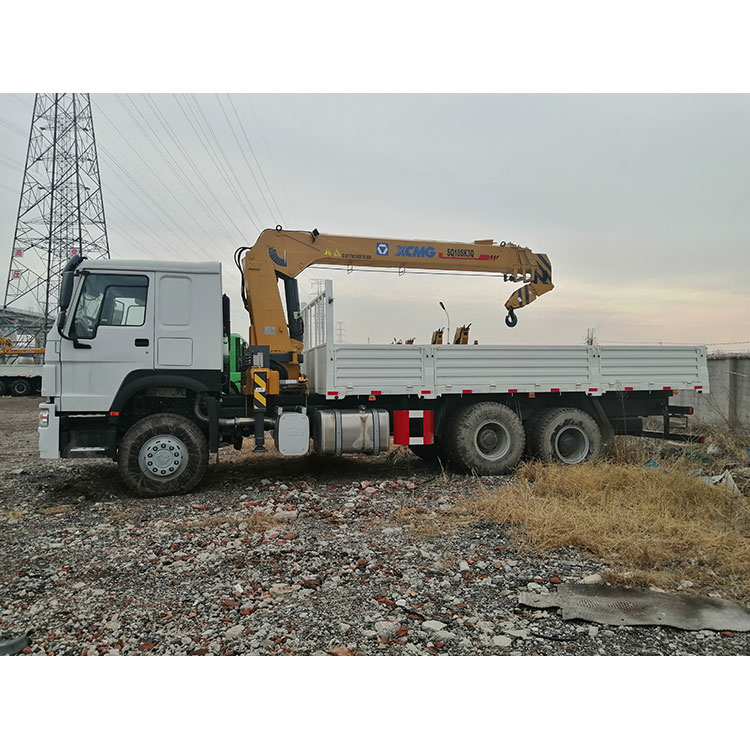

10 Tons Boom Truck

Quan Yu's high-quality 10 Tons Boom Truck is usually divided into two types: fully rotating and non fully rotating. The fully rotating crane can rotate 360 degrees and has higher maneuverability than non fully rotating cranes; The non fully rotating type is usually used in operations that require larger booms such as longer distances or vertical lifting.

Send Inquiry

Product Description

Quan Yu's high-quality 10 Tons Boom Truck is usually divided into two types: fully rotating and non fully rotating. The fully rotating crane can rotate 360 degrees and has higher maneuverability than non fully rotating cranes; The non fully rotating type is usually used in operations that require larger booms such as longer distances or vertical lifting.

Product Parameter

SINOTRUK HOWO 6x4 BOOM TRUCK SPECIFICATIONS
Truck Model				ZZ1257S4341W(Left Hand Drive )
Truck Brand				SINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm				10100×2550×4150
Body				Carriage Internal Dimension:5700x2400x700 mm Steel thickness of Carriage：Floor:3mm/Side:1.5mm XCMG SQ10ZK3Q Folding Arm Crane(10T)
Approaching angle/ Departure angel (°)				16/15
Overhang (front/rear) (mm)				1500/1830
Max gradability (°)				34%
Min Turning Radius(m)				＜9.2m
Min ground clearance(mm)				265
Wheel base (mm)				4300+1400
Max. Driving speed (km/h)				102
Front axle loading capacity (kg)				9000
Rear axle loading capacity(kg)				2*16000
Curb weight (kg)				17260
Gross vehicle weight				31000
10Ton Crane（XCMG SQ10ZK3Q Folding Arm Crane）
Max lifting capacity（KG）			10000
Max lifting capacity（T.M）			20
Recommend power（KW）			28
Max oil flow（L/MIN）			40
Max pressure（MPA）			30
Oil Tank Capacity（L）			160
Rotation angle（°）			360
Max extension length（MM）			10000
Max lifting height（MM）			13000
Max elevation（°）			75
Cab Model	SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.
Engine Model	Model	WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Rated Power(kw/rpm)	273/2200
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃opening begin, Rigid fan
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	Model	SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake,
	Parking Brake (emergency brake)	Spring energy, compressed
Steering system	Model	ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving)
Front axle	SINOTRUK 9000 front axle,new 9-ton front axles of equipped with drum brakes.
Rear axle	SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &Tire	Rims:8.5-20,10 hole-steel ;Tyres:12.00R24 radial tyre with 1 Spare tire.
Electrical system	Electrics Operating voltage	24V,negative grounded
	Starter	24V,7.5 Kw
	Alternator	3-phase,28V,1500 W
	Batteries	2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light。
Oil Tank	Square type-400L fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

HOWO 10 Tons Boom Truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

The 10 Tons Boom Truck is also called boom arm crane truck, hydraulic crane truck, boom truck crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc

As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 20 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our 10 Tons Boom Trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.

We are the agency for SINOTRUK wholesale truck series, we can supply HOWO tractor trucks, HOWO dump trucks, trailer truck, truck parts, agricultural machinery, Construction machinery and parts,HOWO concrete mixer trucks, special trucks and so on.we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.
