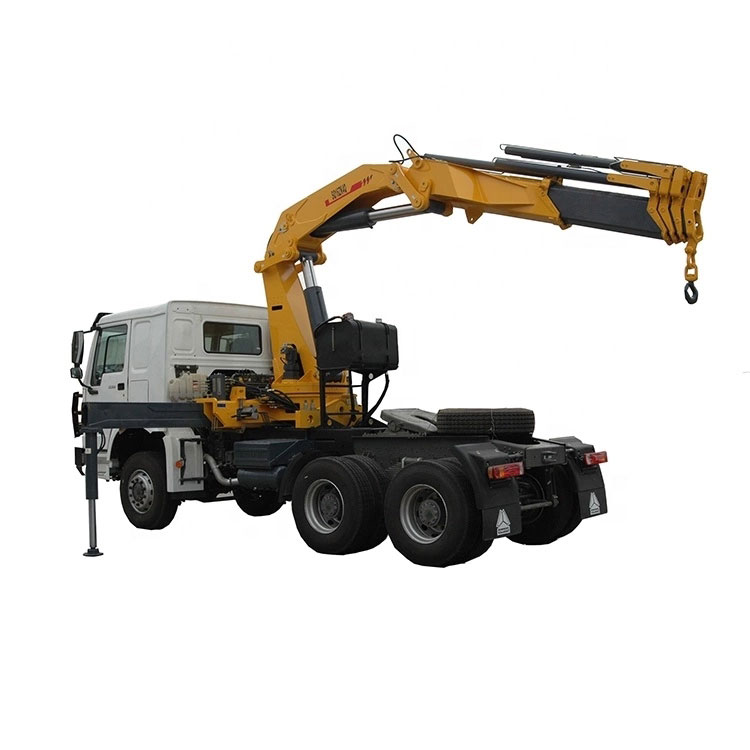

12 Tons Boom Truck

Quan Yu's high-quality 12 Tons Boom Truck is usually divided into two types: fully rotating and non fully rotating. The fully rotating crane can rotate 360 degrees and has higher maneuverability than non fully rotating cranes; The non fully rotating type is usually used in operations that require larger booms such as longer distances or vertical lifting.

Send Inquiry

Product Description

Advantages of Quan Yu's high-quality 12 Tons Boom Truck:

Convenient movement: The 12 Tons Boom Truck adopts a free travel mode outside of the railway, without the need for fixed tracks, and can quickly move to the place where work is needed for work.

Flexible function: The 12 Tons Boom Truck can adapt to different workplaces and work requirements by replacing different accessories, such as steel rope hooks, grab buckets, hooks, etc., making it capable of exerting its power in various fields.

Simple operation: The design of the 12 Tons Boom Truck is simple, and the control method is also relatively intuitive. Generally speaking, if the user has a certain understanding of mechanical equipment such as excavators and bulldozers, learning the operation of the truck crane is also quite easy.

Improving production efficiency: 12 Tons Boom Trucks have short operation time, large engineering quantity, and good results, which can help enterprises quickly complete heavy tasks in the production process and improve production efficiency.

Product Parameter

SINOTRUK HOWO 6x4 BOOM TRUCK SPECIFICATIONS
Truck Model				ZZ1257S4641W(Left Hand Drive )
Truck Brand				SINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm				10400×2550×4150
Body				Carriage Internal Dimension:5700x2400x700 mm Steel thickness of Carriage：Floor:3mm/Side:1.5mm XCMG SQ12SK3Q(Straight arm type)
Approaching angle/ Departure angel (°)				16/12
Overhang (front/rear) (mm)				1500/1830
Max gradability (°)				36%
Min Turning Radius(m)				＜9.4m
Min ground clearance(mm)				265
Wheel base (mm)				4600+1350
Max. Driving speed (km/h)				102
Front axle loading capacity (kg)				9000
Rear axle loading capacity(kg)				2*16000
Curb weight (kg)				17660
Gross vehicle weight				31000
12Ton Crane（XCMG SQ12SK3Q Straight Arm Crane）
Max lifting capacity（KG）			12000
Max lifting capacity（T.M）			30
Recommend power（KW）			30
Max oil flow（L/MIN）			63
Max pressure（MPA）			26
Oil Tank Capacity（L）			160
Rotation angle（°）			360
Max extension length（MM）			13000
Max lifting height（MM）			15000
Max elevation（°）			75
Cab Model	SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.
Engine Model	Model	WD615.47(EURO II),336hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Rated Power(kw/rpm)	273/2200
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃opening begin, Rigid fan
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	Model	SINOTRUK HW19710 transmission ,10 forward and 2 reverse.
Brake system	Service brake	Dual circuit compressed air brake,
	Parking Brake (emergency brake)	Spring energy, compressed
Steering system	Model	ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving)
Front axle	SINOTRUK 9000 front axle,new 9-ton front axles of equipped with drum brakes.
Rear axle	SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &Tire	Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrical system	Electrics Operating voltage	24V,negative grounded
	Starter	24V,7.5 Kw
	Alternator	3-phase,28V,1500 W
	Batteries	2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light。
Oil Tank	Square type-400L fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

We are the agency for SINOTRUK wholesale truck series, we can supply HOWO tractor trucks, HOWO dump trucks, trailer truck, truck parts, agricultural machinery, Construction machinery and parts,HOWO concrete mixer trucks, special trucks and so on.we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.

Main products

1. Dump Truck / Tipper Truck

2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,

12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

The 12 Tons Boom Truck is also called boom arm crane truck, hydraulic crane truck, boom truck crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc

As a professional 12 Tons Boom Truck manufacturer in China, the crane capacity is from 2 ton to 20 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
