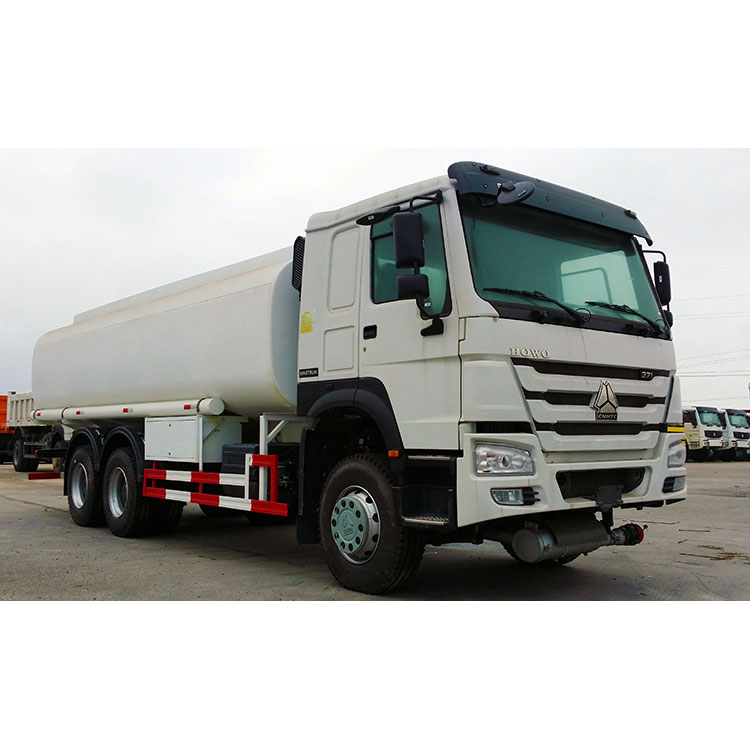

20000L Fuel Tank Truck

20000L Fuel Tank Truck：According to the load capacity, it is divided into light oil tank trucks, small oil tank trucks, medium oil tank trucks, medium and large oil tank trucks, and large oil tank trucks.

Send Inquiry

Product Description

20000L Fuel Tank Truck：According to the load capacity, it is divided into light oil tank trucks, small oil tank trucks, medium oil tank trucks, medium and large oil tank trucks, and large oil tank trucks.

Product Parameter

SINOTRUK HOWO-A7 8x4 FUEL TANK TRUCK SPECIFICATIONS
Truck Model		ZZ1317N4667N1(Left Hand Drive )
Truck Brand		SINOTRUK-HOWO-A7
Dimension (LxWxH) (unloaded)mm		11950×2550×3650
Tank volume(m³)		Tank volume: (Option:3C,4C,5C,6C) 35m³ , 4 separated tanks, head 5mm, body 5mm,material Q235; Subsea valve: 4 positions;2 units 6m 4" hoses. Other: pressure unloading, gravity unloading, towing wire, fire caps, fire extinguishers. Vehicle spray wax.
Approaching angle/ Departure angel (°)		16/15
Overhang (front/rear) (mm)		1500/2625
Wheel base (mm)		1800+4575+1400
Max. Driving speed (km/h)		95
Front axle loading capacity (kg)		2*9000
Rear axle loading capacity(kg)		2*16000
Curb weight (kg)		15850
Gross vehicle weight		40000
Cab Model	SINOTRUK A7-W Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.
Engine Model	Model	WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Rated Power(kw/rpm)	273/2200
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃opening begin, Rigid fan
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	Model	SINOTRUK HW19710 transmission ,10 forward and 2 reverse.
Brake system	Service brake	Dual circuit compressed air brake
	Parking Brake (emergency brake)	Spring energy, compressed
Steering system	Model	ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving)
Front axle	SINOTRUK 29000kg Front Axle,new 29-ton front axles of equipped with drum brakes.
Rear axle	SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &Tire	Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrical system	Electrics Operating voltage	24V,negative grounded
	Starter	24V,7.5 Kw
	Alternator	3-phase,28V,1500 W
	Batteries	2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light。
Oil Tank	Square type-400L Aluminum alloy fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Fuel Tank Truck Introduction

Our tank trucks for transporting light fuel oil are divided into two categories: oil trucks and fuel trucks. They are mainly used for light fuel oil such as gasoline, diesel and kerosene.

Transport and refuel, if necessary, transport and fill other non-corrosive liquids. The tank trucks produced by our company have the advantages of reasonable design, fine manufacturing, excellent materials and excellent performance. The main technical indicators are in line with the requirements of GB18564 and QC/T653 standards.

Main Structure and Working Principle

The tank truck (for example, large-tonnage sprinklers) is mainly composed of a car chassis, a tank assembly, a pipeline system, an oil hose, a mopping tape, and a protective device.

Tanker Body

The tank body is a metal atmospheric pressure tank, which mainly has carbon steel tanks, stainless steel tanks and aluminum alloy tanks. The working pressure of the tank body is not more than 72KPa, and the working temperature of the tank body is -40～+50°C.

The inside of the tank is equipped with a wave-proof plate, and some of the tanks are equipped with a longitudinal oil-blocking plate to reduce the impact of the oil in the tank on the head and the barrel.

There is a sedimentation tank and a sewage outlet at the bottom of the tank. The sewage outlet can be opened irregularly according to the situation, and the water and dirt stored in the sedimentation tank can be released. Integrated with the sedimentation tank, there is also an oil drain port through which the oil drain pipe can be connected to form a fuel tanker, or the oil pump inlet pipe can be connected to form a fuel truck.

The upper part of the tank body is provided with a safety frame, which is mainly for ensuring the safety of the user when operating above the tank body, and also for accumulating the oil spilled during the oil filling.

Fire extinguishing and silencing equipment

The tank trucks produced by our company are equipped with fireproof caps to facilitate transportation vehicles to enter the oil depot or gas station. In addition, customers can also install fire muffler, and vehicles equipped with fire muffler can be equipped without fireproof caps.

Bottom fueling system

Some models have a bottom refueling system. The bottom refueling system mainly consists of an explosion-proof manhole cover, a piping system, an oil and gas recovery system, an anti-overflow system and a pneumatic control system.
