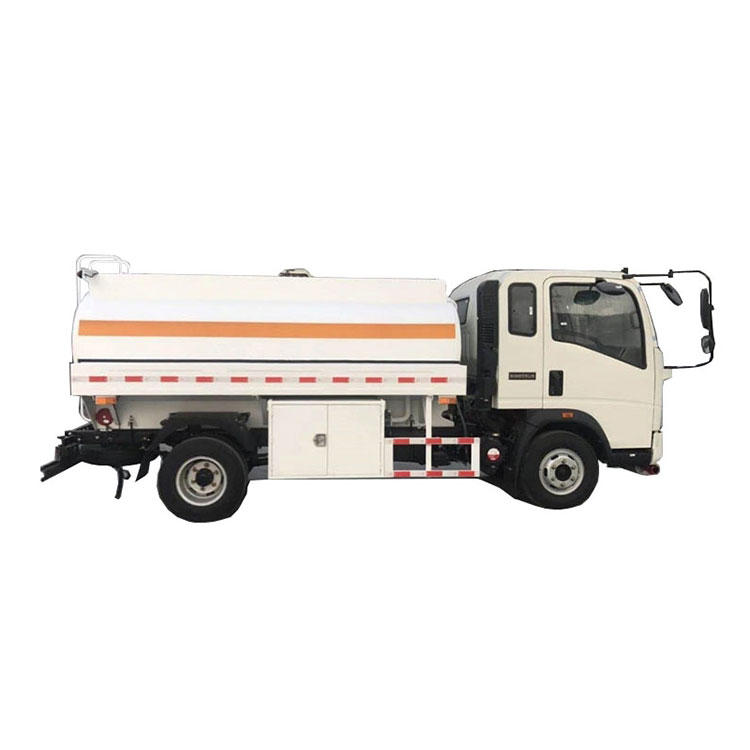

8000L Fuel Tank Truck

Quan Yu's high-quality 8000L Fuel Tank Truck：According to the transportation medium, configuration, and different names in different places, there are various names, such as: oil tank truck, tank truck, oil transport truck, fuel supply truck, oil pulling truck, mobile refueling truck, tax controlled refueling truck, computer refueling truck, diesel transport truck, gasoline transport truck, coal tar transport truck, lubricating oil transport truck, edible oil transport truck, crude oil transport truck, heavy oil transport truck, oil transport truck, etc.

Product Parameter

Fuel Tank Truck Introduction

Our tank trucks for transporting light fuel oil are divided into two categories: oil trucks and fuel trucks. They are mainly used for light fuel oil such as gasoline, diesel and kerosene.

Transport and refuel, if necessary, transport and fill other non-corrosive liquids. The tank trucks produced by our company have the advantages of reasonable design, fine manufacturing, excellent materials and excellent performance. The main technical indicators are in line with the requirements of GB18564 and QC/T653 standards.

Main Structure and Working Principle

The tank truck (for example, large-tonnage sprinklers) is mainly composed of a car chassis, a tank assembly, a pipeline system, an oil hose, a mopping tape, and a protective device.

Tanker Body

The tank body is a metal atmospheric pressure tank, which mainly has carbon steel tanks, stainless steel tanks and aluminum alloy tanks. The working pressure of the tank body is not more than 72KPa, and the working temperature of the tank body is -40～+50°C.

The inside of the tank is equipped with a wave-proof plate, and some of the tanks are equipped with a longitudinal oil-blocking plate to reduce the impact of the oil in the tank on the head and the barrel.

There is a sedimentation tank and a sewage outlet at the bottom of the tank. The sewage outlet can be opened irregularly according to the situation, and the water and dirt stored in the sedimentation tank can be released. Integrated with the sedimentation tank, there is also an oil drain port through which the oil drain pipe can be connected to form a fuel tanker, or the oil pump inlet pipe can be connected to form a fuel truck.

The upper part of the tank body is provided with a safety frame, which is mainly for ensuring the safety of the user when operating above the tank body, and also for accumulating the oil spilled during the oil filling.

Fire extinguishing and silencing equipment

The tank trucks produced by our company are equipped with fireproof caps to facilitate transportation vehicles to enter the oil depot or gas station. In addition, customers can also install fire muffler, and vehicles equipped with fire muffler can be equipped without fireproof caps.

Bottom fueling system

Some models have a bottom refueling system. The bottom refueling system mainly consists of an explosion-proof manhole cover, a piping system, an oil and gas recovery system, an anti-overflow system and a pneumatic control system.
