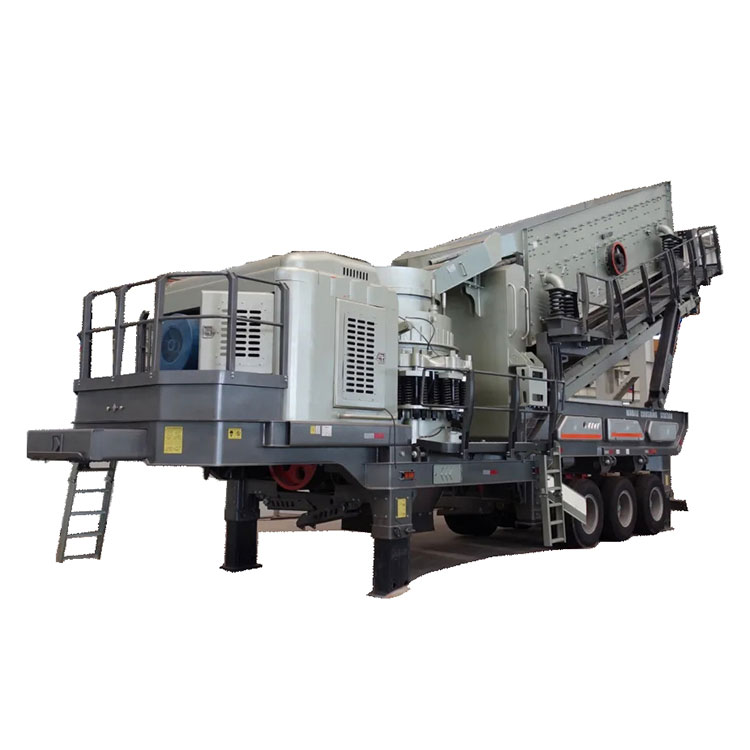

Cone Primary Material Crushing Equipment
Cone Primary Material Crushing Equipment is a commonly used crushing equipment, suitable for crushing various ores and rocks with medium hardness and above. It is widely used in industries such as mining, metallurgy, construction, cement, etc.
Send Inquiry
Product Description
Cone Primary Material Crushing Equipmentis a crushing machine suitable for raw materials in the metallurgical, construction, road construction, chemical, and silicate industries. According to different crushing principles and product particle sizes, it is further divided into many models. Crushers are widely used in various sectors such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industry. The cone crusher has a large crushing ratio, high efficiency, low energy consumption, and uniform product particle size, suitable for medium and fine crushing of various ores and rocks.
The models are mainly divided into SMG series, spring type, and HPC series, and their working principles, structures, etc. are introduced respectively. It also provides a detailed introduction to the development history, working principle, composition, influencing factors, technical advantages, operational matters, common faults, and inspection and maintenance of cone crushers.
Product Parameter
|
Equipment Model |
CMC200GS |
CMC200G |
CMC300GS |
CMC300G |
CMC300H |
||
|
Feed Hopper |
Feed Capacity(t/h) |
150-390 |
150-390 |
150-390 |
150-390 |
150-390 |
|
|
Feed Hopper Volume(m³) |
6.3 |
6.3 |
6.3 |
6.3 |
6.3 |
||
|
Feed Belt Conveyor |
Model(W mm * L mm) |
B=1200 L=6100 |
B=1200 L=6100 |
B=1200 L=6100 |
B=1200 L=6100 |
B=1200 L=6100 |
|
|
Feed Height(mm) |
3730 |
3730 |
3730 |
3730 |
3730 |
||
|
Power(kW) |
18.5 |
18.5 |
18.5 |
18.5 |
18.5 |
||
|
Crushing Equipment |
Cone Crusher |
GPY200S |
GPY200 |
GPY300S |
GPY300 |
HPY300 |
|
|
Feed Opening Width(mm) |
330 |
70-210 |
380 |
60-260 |
107-233 |
||
|
Max Feed Size(mm) |
265 |
60-165 |
304 |
50-210 |
85-185 |
||
|
Discharge Size(mm) |
35-45 |
15-25 |
40-45 |
10-30 |
6-45 |
||
|
Capacity(t/h) |
225-345 |
135-215 |
440-520 |
140-345 |
75-430 |
||
|
Power(kW) |
160 |
160 |
250 |
250 |
220 |
||
|
Main Belt Conveyor |
(W mm * L mm * Power kW) |
1000 * 130000 * 15 |
1000 * 130000 * 15 |
1000 * 130000 * 15 |
1000 * 130000 * 15 |
1000 * 130000 * 15 |
|
|
Discharge Belt Conveyor |
(W mm * L mm * Power kW) |
1200 * 6400 * 11 |
1200 * 6400 * 11 |
1200 * 6400 * 11 |
1200 * 6400 * 11 |
1200 * 6400 * 11 |
|
|
Transit Belt Conveyor |
(W mm * L mm * Power kW) |
500 * 2650 * 4 |
500 * 2650 * 4 |
500 * 2650 * 4 |
500 * 2650 * 4 |
500 * 2650 * 4 |
|
|
Material Return Belt Conveyor |
(W mm * L mm * Power kW) |
500 * 9000 * 5.5 |
500 * 9000 * 5.5 |
500 * 9000 * 5.5 |
500 * 9000 * 5.5 |
500 * 9000 * 5.5 |
|
|
Screen |
(W mm * L mm * Power kW) |
1500 * 3600 * 7.4 |
1500 * 3600 * 7.4 |
1500 * 3600 * 7.4 |
1500 * 3600 * 7.4 |
1500 * 3600 * 7.4 |
|
|
Self-Dumping Magnetic Separator |
Model * Power(kW) |
RCYQ 1000 * 2.2 |
RCYQ 1000 * 2.2 |
RCYQ 1000 * 2.2 |
RCYQ 1000 * 2.2 |
RCYQ 1000 * 2.2 |
|
|
Track Chassis |
Walking Mode |
Track-Mounted |
Track-Mounted |
Track-Mounted |
Track-Mounted |
Track-Mounted |
|
|
Walking Speed(km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
||
|
Max Climbing Angle |
20° |
20° |
20° |
20° |
20° |
||
|
Integrated Machine |
Driving Mode(Optional as requested) |
Hydraulic Driving / Grid Power Driving |
Hydraulic Driving / Grid Power Driving |
Hydraulic Driving / Grid Power Driving |
Hydraulic Driving / Grid Power Driving |
Hydraulic Driving / Grid Power Driving |
|
|
Omni-Hydraulic Driving |
Omni-Hydraulic Driving |
Omni-Hydraulic Driving |
Omni-Hydraulic Driving |
Omni-Hydraulic Driving |
|||
|
Engine |
Model |
CUMMINS |
CUMMINS |
CUMMINS |
CUMMINS |
CUMMINS |
|
|
Rated Power(kW) |
200-500 |
200-500 |
200-500 |
200-500 |
200-500 |
||
|
Rated Rotation Speed(r/min) |
1800 |
1800 |
1800 |
1800 |
1800 |
||
|
Total Weight(kg) |
45100/53700 |
43295/51795 |
54290/63890 |
52190/61000 |
53200/62700 |
||
|
Transport Dimensions: |
17150 * 3119 * 3800 |
17150 * 3119 * 3800 |
17150 * 3119 * 3800 |
17150 * 3119 * 3800 |
17150 * 3119 * 3800 |
||
|
Working Dimensions: |
18130 * 3560 * 4965 |
18130 * 3560 * 4965 |
18940 * 3560 * 4706 |
18940 * 3560 * 4706 |
18940 * 3560 * 4706 |
||
Note:
① The processing capacity of the crushing equipment is related to material hardness, feed size, and discharge size.
② Standard: The main belt and tail material belt equipped with folding technology, PLC+ the display control, the iron separator, and the wireless remote control.
③ Optional: Omni-hydraulic driving, the material returning system, the dust collector spraying system, the diesel injection pump, the wired remote control, the centralized lubrication system.
④ We reserve the right of final interpretation of the data, subject to change without notice.
Description
Track-mounted mobile cone crushing plants are utilized for crushing materials in the secondary and tertiary stages. For processing hard rocks, the configuration form of "a cone crusher + a screening machine" is mostly adopted. It adopts the high-strength casting steel frame, the alloy material forged main shaft, the high-precision arc-shaped spiral gear transmission structure, combining with a variety of chamber type options and the intelligent operation control system, which thus perfectly embodies its performance and advantages.
Features
1. Equipped with a cone crusher which has excellent performance, it is suitable for crushing in the secondary and tertiary stages.
2. It is easy to be transported directly between different working sites.
3. It boasts reasonable configuration, a smooth technical process, high production efficiency, and good product shape.
It can be utilized jointly with other mobile crushing plants and mobile screening plants.
