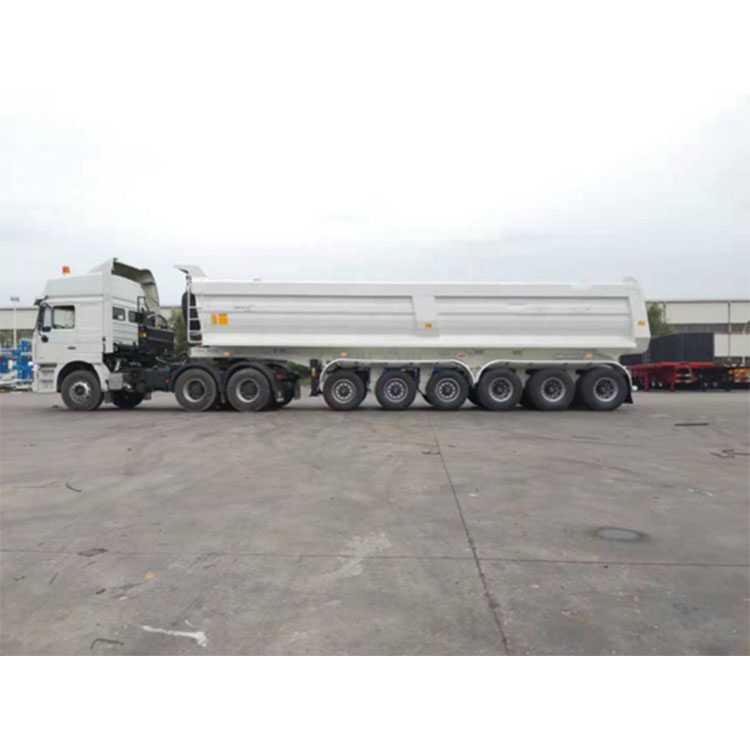

Six Axle Dump Semi Trailer

SIX AXLES TIPPER TRAILER 100 TON DUMP SEMI TRAILER

Tare Weight

17500KGS

Payload

100000KGS

Overall Length

12500mm

Overall Width

2500mm

Dumper Body

Type

Rear tipping type

Volume

45CBM

Body Sheet

6-8mm HIGH TENSIL steel sheet, H700

Main Parameters

Chassis

Heavy duty and extra durability designed I beam;
Opting for high tensile steel Q345B;
Welded by automatic submerged-arc processes;
Top Flange: 14mm Width: 140mm;
Middle Flange: 6mm;
Bottom Flange: 16mm Width: 140mm;

Axle

6 axles Brand Name: BPW or FUWA

Suspension

Mechanical suspension or air suspension

Spring

Leaf spring or air bag

King Pin

JOST brand 2" Bolt-in

Landing Gear

JOST brand Two-speed, manual operating

Wheel Rim

8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5

Tyre

11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 6 relay valve;
T30/30+T30 Spring brake chamber;
40L air tanks

Painting

Complete chassis sand blasting to clean rust;
1 coat of anticorrosive prime;
2 coats of final paint

Accessories

One standard tool box

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
