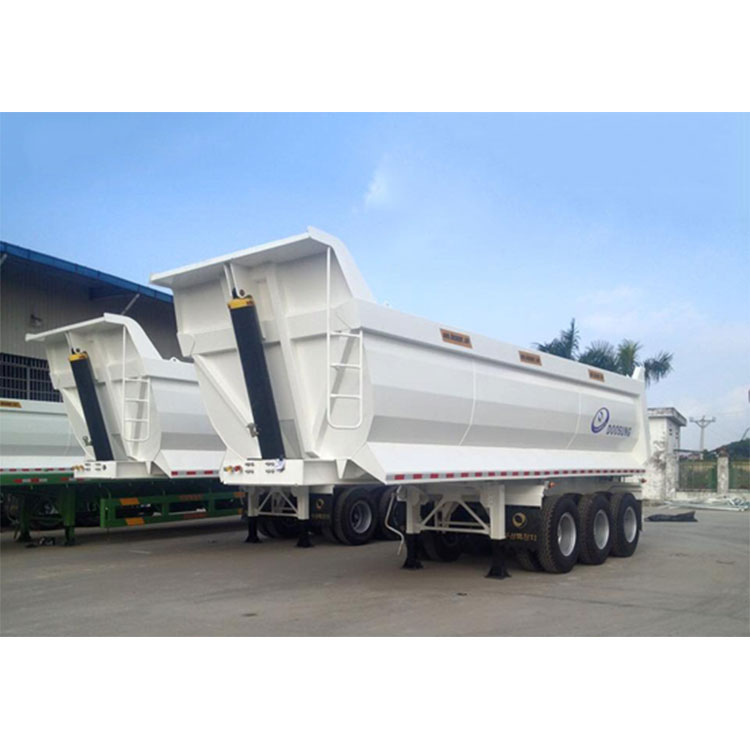

A three axle semi-trailer 40ton can be divided into two categories according to its purpose: one category is heavy-duty and super heavy-duty dump trailers used for non road transportation, mainly undertaking transportation tasks in large mines, engineering, etc., usually used in conjunction with excavators. Another type of light and medium-sized ordinary dump truck used for road transportation mainly undertakes the transportation of loose goods such as sand, gravel, soil, coal, etc., and is usually used in conjunction with loaders.
THREE AXLES AQUARE TYPE TIPPER SEMI TRAILER HYVA |
|
Tare Weight |
11500KGS |
Payload |
40000KGS |
Overall Length |
11500mm |
Overall Width |
2500mm |
Dumper Body |
|
Type |
Front tipping type |
Volume |
25-35CBM |
Body Sheet |
10mm steel sheet |
Main Parameters |
|
Chassis |
Heavy duty and extra durability designed I beam; |
Axle |
3 axles Brand Name: BPW or FUWA |
Suspension |
Mechanical suspension or air suspension |
Spring |
Leaf spring or air bag |
King Pin |
JOST brand 2" Bolt-in |
Landing Gear |
JOST brand Two-speed, manual operating |
Wheel Rim |
8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 |
Tyre |
11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 |
Spare Tire |
One set of spare tire including a carrier |
Braking System |
WABCO RE 6 relay valve; |
Painting |
Complete chassis sand blasting to clean rust; |
Accessories |
One standard tool box |
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
SINOCTM TIPPER SEMI TRAILER adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.
For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition. For our tipper trailers, we can design the U type, also called half pipe/ Square type / container flatbed dumper, the capacity range is from 30 ton to 100 ton.
Submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
SINOCTM dump tipper trailer are equipped with cylinder, which is more reliable and more safety
