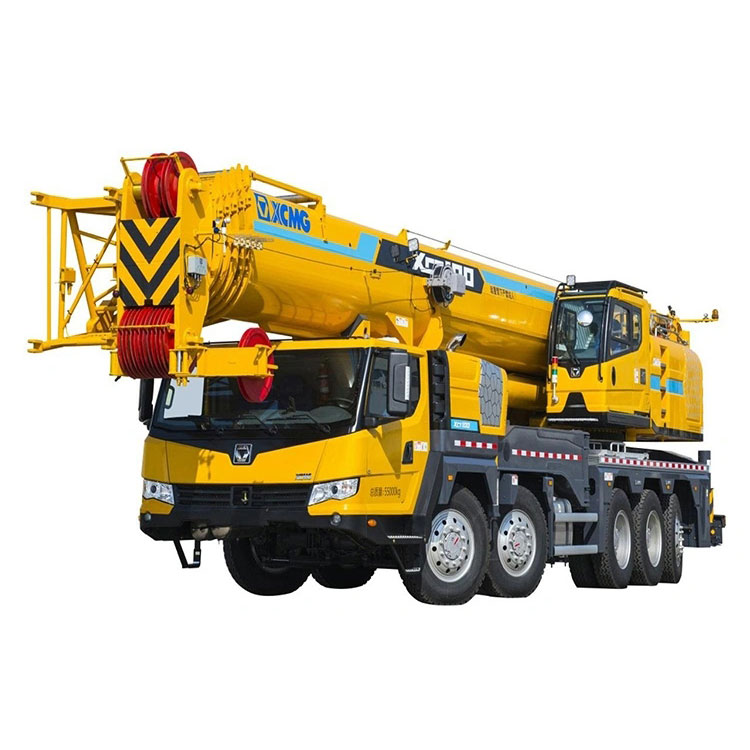

100 Tons Truck Crane

Quan Yu's high-quality 100 Tons Truck Crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Send Inquiry

Product Description

Lifting function: The Quan Yu's high-quality 100T truck crane can easily complete lifting tasks below 100 tons, including lifting heavy objects, handling goods, etc. Its powerful lifting capacity can meet various complex lifting needs.

Telescopic arm function: This truck crane is equipped with a telescopic arm, allowing it to adapt to lifting tasks at different distances and heights. By adjusting the telescopic arm, more flexible and precise control can be achieved.

There are many types of car cranes, and their classification methods are also different, mainly including:

1.According to the transmission mode of the transmission device, it is divided into three categories: mechanical transmission, electric transmission, and hydraulic transmission.

2.According to the slewing range of the lifting device on the horizontal plane (i.e. the slewing range of the turntable), there are two types of cranes: fully rotating truck cranes (the turntable can rotate 360 ° at will) and non fully rotating truck cranes (the turntable's slewing angle is less than 270 °).

3.According to the structural form of the boom, it can be divided into foldable boom, telescopic boom, and truss boom truck crane.

Product Parameter

XCMG XCT100 TRUCK CRANE SPECIFICATIONS
Outline Dimensions	Length×Width×Height		mm	15600×3000×3870
	Wheel base		mm	1920+3500+1420+1505
	Track(front/rear)		mm	2449/2315
	Front/Rear overhang		mm	2650/2765
	Front/Rear extension		mm	1840/0
Weight	Max. gross vehicle weight		kg	55000
	Axle load	1st Axle	kg	10000
		2nd Axle	kg	10000
		3rd Axle	kg	13000
		4th Axle	kg	13000
		5th Axle	kg	9000
Travel	Max. travel speed		km/h	90
	Min. turning diameter		m	23
	Min. ground clearance		mm	326
	Approach / departure angle		°	18/13
	Braking distance(initial brake speed at 30 km/h)		m	≤10
	Max. grade ability		%	45
	Exterior noise level		dB(A)	≤88
	Noise level at seated position		dB(A)	≤90
	Oil consumption per 100 km		L	70(Weichai )	65(cummins)
Chassis	Engine	Model	--	WP6G240E330	OM906LA.E3A/2
		Rated power/ rotating speed	kW/(r/min)	176/2300	190/2200
		Max. output torque/rotating speed	N.m/(r/min)	860/1200-1700	1000/1200-1600
		Model	--	WP12.430 E50	ISM11E5 440
		Rated power/ rotating speed	kW/(r/min)	316/1900	324/1900
		Max. output torque/ rotating speed	N.m/(r/min)	2060/1000-1400	2080/1200
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

* 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the max. working radius is 62 m; The performance takes the lead comprehensively.

* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.

* 100 Tons Truck Crane is also the first four-wheel driven truck crane domestically, which can meet the need under various road conditions.Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.
