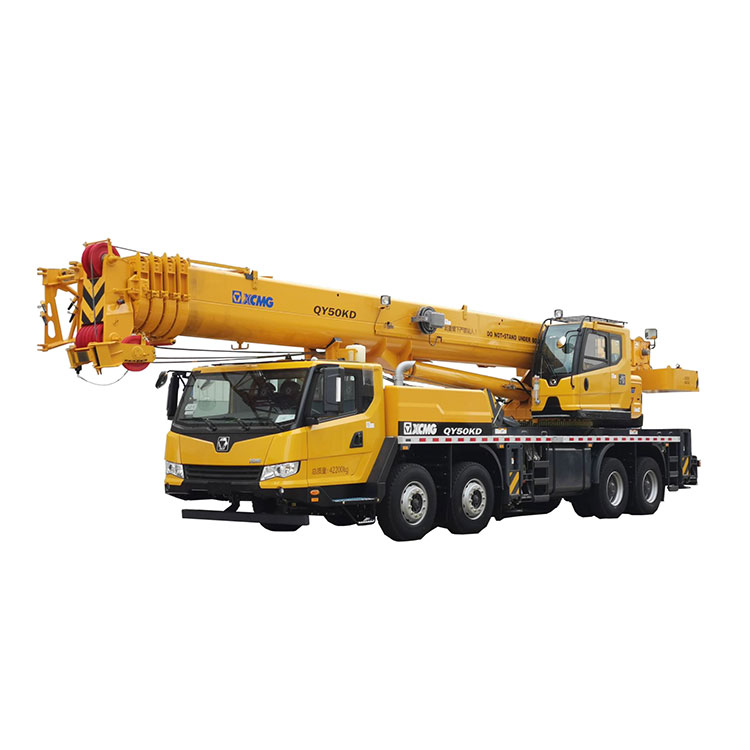

50 Tons Truck Crane

A Quan Yu's high-quality 50 tons truck crane can be used to handle small and medium-sized goods and heavy equipment. It has high driving speed and climbing ability, and can operate in relatively small spaces.

Send Inquiry

Product Description

Quan Yu's high-quality 50 Tons Truck Crane structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors. Dual-pump confluence technology, operating efficiency of a comprehensive lead.

Advantages and highlights:

1. Leading lifting and driving performances

Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.

2. Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving

Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45.

Product Parameter

XCMG TRUCK CRANE QY50KA SPECIFICATIONS
Description		Unit	Prameter value
Overall length		mm	13930
Overall width		mm	2780
Overall Height		mm	3630
Axle base	1st ,2nd axle	mm	1470
	2nd ,3rd axle		4300
	3rd ,4th axle		1350
Wheel Base		mm	2304+2075
Front overhang/rear overhang		mm	2389/2064or 2376/2064
Front extension/rear extension		mm	2131/226 or 2144/226
Total vehicle mass in travel configuration		kg	42200
Axle load	Front axle	kg	16200
	Rear axle		26000
Engine Model			WD615.338
Engine rated power		kw/(r/min)	276/2200
Engine rated torque		N.m/(r/min)	1500/1300-1600
Max. travel speed		km/h	85
Min. steady travel speed		km/h	2~3
Min. turning diameter		m	24
Min. ground clearance		mm	327
Max. grade ability		%	42
Approach angle		°	19
Departure angle		°	15
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	40
Exterior noise level during acceleration traveling		dB (A)	≤88
Noise level at seated position		dB (A)	≤90
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation

The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.

Air-aid shift gears and 45% of shifting force is reduced

The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
