80 Tons Truck Crane

The working intensity of the Quan Yu's high-quality 80 tons truck crane is high, and the product adopts H-shaped support legs, which not only can withstand the heavy lifting weight at close distances, but also ensure the stability of the equipment's long-distance lifting, improving the lifting operation ability of the vehicle. Widely applicable to construction sites, urban renovation, transportation, ports, bridges, oil fields, mines and other complex working environments.

Send Inquiry

Product Description

Quan Yu's high-quality 80 Tons Truck Crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

There are many types of car cranes, and their classification methods are also different, mainly including:

Divided by leg type: frog leg, x-shaped leg, h-shaped leg. The frog leg has a small span and is only suitable for smaller tonnage cranes; X-shaped legs are prone to slippage and are rarely used; H-shaped support legs can achieve a larger span and have obvious advantages for the stability of the entire machine, so hydraulic truck cranes produced in China mostly use H-shaped support legs.

Product Parameter

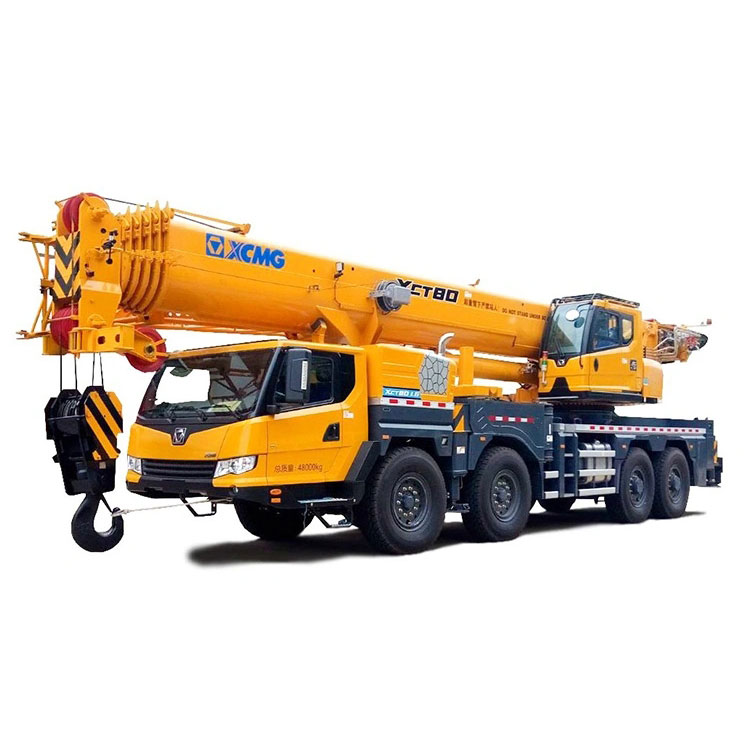

XCMG XCT80 TRUCK CRANE SPECIFICATIONS
Dimensions	Overall length	14770mm
	Overall width	2800mm
	Overall height	3890mm
Weight	Dead weight in travel state	49870Kg
	Front axle load	24000Kg
	Rear axle load	26000Kg
Power	Engine model	WP12.375N
	Engine rated output	276/1900 Kw(r/min)
	Engine rated torque	1800(1000~1400) N.m(r/min)
Travel	Max.travel speed	80Km/h
	Max. turning diameter	24m
	Max. ground clearance	371mm
	Approach angle	17°
	Departure angle	15.5°
	Max. grade ability	40%
	Fuel consumption of 100km	≤45L
Lifting performance	Max. total rated lifting load	80t
	Min. rated working radius	3m
	Turning radius at swing table tail	4670mm
	Base boom max. load moment	3000Kn.m
	Base boom	12.4m
	Full-extend boom	47.5m
	Full-extend Boom+ Jib	65m
	Outrigger longitudinal distance span	8.075m
	Outrigger lateral distance span	7.9m
Working speed	Boom elevating time	70s
	Boom elevating time	150s
	Max. slewing speed	≤1.9r/min
	Main winch max. Speed (no load)	130m/min
	Auxiliary winch max. speed(no load)	110m/min
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

* Super lifting performance

6-section boom of 55m with U-type profile is the longest of the same class in the industry; The performance is 10~15% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. New single-cylinder pinning telescoping system brings higher telescoping reliability.

* New energy-saving hydraulic system

The min. stable slewing speed is 0.1°/s. The min.stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

* Drive train

CHINA Nation Heavy man diesel engine,rated power 268kw, max. torque 1800N.m

Max. travel speed 80km/h, Max. gradeability 45%

* Low-speed large-torque power drive system

Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.
