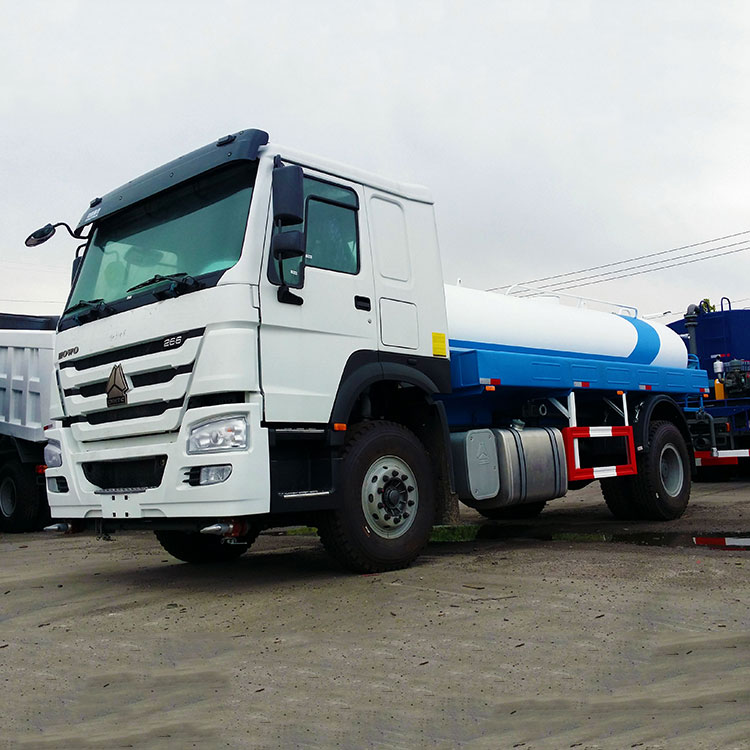

10000L Water Tank Truck

Quan Yu's high-quality 10000L Water Tank Truck is Used for cleaning road surfaces, sanitation, dust prevention, watering, spraying pesticides, etc. in urban roads, large factory areas, troops, gardens and other units to achieve environmental beautification. It can also be used for temporary emergency fire sprinkler.

Send Inquiry

Product Description

Quan Yu's high-quality 10000L Water tank trucks are classified according to their chassis: they are divided into automotive, semi trailer, and trailer type water tank trucks.


Product Parameter

SINOTRUK HOWO 4x2 WATER TANK TRUCK SPECIFICATIONS

Truck Model

ZZ1167M4611W(Left Hand Drive )

Truck Brand

SINOTRUK-HOWO

Dimension (LxWxH) (unloaded)mm

8190×2550×3650

Tank volume(m³)

10m³

Pump:Water sprinkling truck dedicated pump,

65QSB-50/110,output 50cbm/h.pump lift 110m.

High-pressure water gun shoot,gun range 35m

Sprinkling scope:14-18m

Approaching angle/ Departure angel (°)

16/15

Overhang (front/rear) (mm)

1500/1890

Wheel base (mm)

4600

Max. Driving speed (km/h)

95

Front axle loading capacity (kg)

7000

Rear axle loading capacity(kg)

16000

Curb weight (kg)

8950

Gross vehicle weight

16000

Cab Model

SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.

Engine Model

Model

WD615.87(EURO II),290hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Rated Power(kw/rpm)

213/2200

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃opening begin, Rigid fan

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW13710 transmission ,10 forward and 2 reverse

Brake system



Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8118 Steering Gear Box ,hydraulic steering with power assistance.

(Left hand driving)

Front axle

SINOTRUK 7000kg Front Axle,new 7-ton front axles of equipped with drum brakes.

Rear axle

SINOTRUK 16000kg Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio:4.42;strengthened design, loading capacity and reliability have been increased greatly.

Wheels &Tire

Rims:9.0-22.5 10 hole-steel ;Tyres:12R22.5 tubeless tyre with 1 Spare tire.

Electrical system

Electrics Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.

Head lights and rear light mesh protection, Flash light.

Oil Tank

Square type-400L Aluminum alloy fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


Water Tank Truck Introduction

Our company offers a variety of sprinklers as small as 1.5 tons and as large as 30 tons to meet the needs of different users. Our company's sprinkler products are reasonable in design, beautiful in appearance, large in liquid carrying capacity, and have many functions such as road scouring, road sprinkling, emergency fire fighting, strong scouring, and self-flow irrigation.


They are suitable for urban landscaping, sanitation and other professional departments as well as highways and institutions. Comprehensive use of large and medium-sized enterprises and institutions such as schools, factories and mines


Main Structure and Working Principle

Sprinklers (for example, large-tonnage sprinklers) are mainly made up of automobile chassis, tank body, power take-off and transmission system, waterway system, pneumatic system


Tanker Body

The tank body is a metal atmospheric pressure tank body, which mainly has a carbon steel tank and a stainless steel tank, and the carbon steel tank body is treated with anti-corrosion treatment.


The tank has two elliptical and square circles (rectangular arcs). The head is automatically rotated by a CNC rotary machine, which has a beautiful appearance and high strength after molding. The barrel body is made of longitudinal seam butt joints, fully automatic gas shielded welding, and the whole coil is formed after the board is formed. The shape is beautiful and the straightness is good. The barrel and the head are fully welded and butt welded.


The inside of the tank is equipped with a wave-proof plate, and some of the tanks are provided with a longitudinal wave-proof plate to reduce the impact of the liquid in the tank on the head and the barrel.


A sedimentation tank and a sewage outlet are arranged at the bottom of the tank body, and the sewage outlet is opened irregularly according to the situation, and the accumulated dirt in the sedimentation tank is released.


Water system

The waterway system mainly consists of a water pump, a front water spray, a high-spray spray gun, a rear sprinkler, a pressure drain, and a self-flowing drain device.
