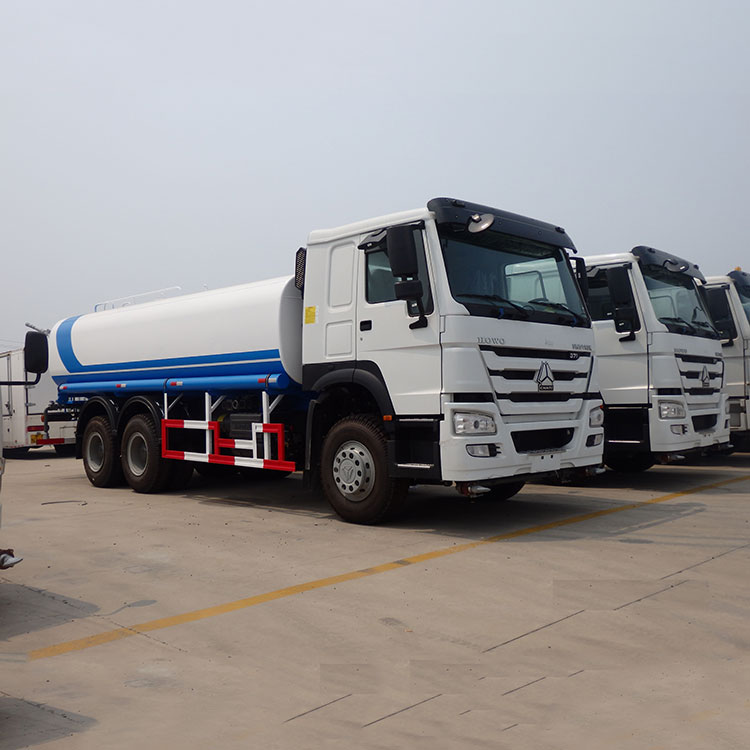

20000L Water Tank Truck

SINOTRUK HOWO 6x4 WATER TANK TRUCK SPECIFICATIONS

Truck Model

ZZ1257N4641W(Left Hand Drive )

Truck Brand

SINOTRUK-HOWO

Dimension (LxWxH) (unloaded)mm

10650×2550×3650

Tank volume(m³)

25m³

Pump:Water sprinkling truck dedicated pump,

65QSB-50/110,output 50cbm/h.pump lift 110m.

High-pressure water gun shoot,gun range 35m

Sprinkling scope:14-18m

Approaching angle/ Departure angel (°)

16/12

Overhang (front/rear) (mm)

1500/2875

Wheel base (mm)

4575+1400

Max. Driving speed (km/h)

95

Front axle loading capacity (kg)

9000

Rear axle loading capacity(kg)

2*16000

Curb weight (kg)

12390

Gross vehicle weight

30000

Cab Model

SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.

Engine Model

Model

WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Rated Power(kw/rpm)

273/2200

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃opening begin, Rigid fan

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW19710 transmission ,10 forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8118 Steering Gear Box ,hydraulic steering with power assistance.

(Left hand driving)

Front axle

SINOTRUK 9000kg Front Axle,new 9-ton front axles of equipped with drum brakes.

Rear axle

SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Wheels &Tire

Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.

Electrical system

Electrics Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.

Head lights and rear light mesh protection.

Oil Tank

Square type-400L Aluminum alloy fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
