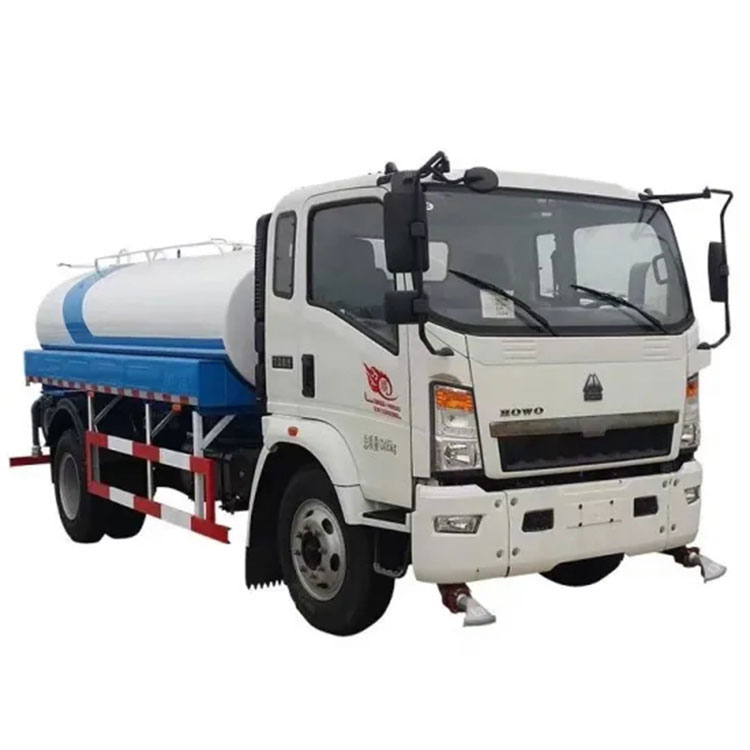

8000L Water Tank Truck

Quan Yu's high-quality 8000L Water Tank Truck is Used for cleaning road surfaces, sanitation, dust prevention, watering, spraying pesticides, etc. in urban roads, large factory areas, troops, gardens and other units to achieve environmental beautification. It can also be used for temporary emergency fire sprinkler.

Send Inquiry

Product Description

Quan Yu's high-quality 8000L Water Tank Truck：Used for cleaning road surfaces, sanitation, dust prevention, watering, spraying pesticides, etc. in urban roads, large factory areas, troops, gardens and other units to achieve environmental beautification. It can also be used for temporary emergency fire sprinkler.

Product Parameter

SINOTRUK HOWO WATER TANK LIGHT TRUCK SPECIFICATION
Truck Model		ZZ1107G4215C1
Truck Brand		SINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm		7445×2400×2650
Tank Volume		8m³
Approaching angle/ Departure angel (°)		27/20
Overhang (front/rear) (mm)		1240/2005
Wheel base (mm)		4200
Max. Driving speed (km/h)		95
Front axle loading capacity (kg)		3200
Rear axle loading capacity(kg)		8000
Curb weight (kg)		5350
Gross vehicle weight		12000
Cab	2080 Extended cab,with A/C
Engine Model	Model	YUCHAI brand,YC4E160-33, 160hp
	Rated Power(kw/rpm)	118/2600
Clutch	Diaphragm spring clutch,single plate
Transmission	Model	DC6J65TC,6F&1R
Brake system	Service brake	Dual circuit air brake
	Parking Brake	Spring energy, compressed air operating on rear wheels
Steering system	Model	Power steering,Adjustable steering wheel. (left hand driving)
Front axle	(3.2T)Forging I-beam,Drum brake.
Rear axle	(8.0T) Pressed welding axle housing drum brake.
Tire	8.25R20 Radial tire 6 pieces with 1 Spare tire.
Electrical system	Type	SINOTRUK CAN bus system with VCO instrument
	Voltage	12V,
	Batteries	2*12V, 120 Ah
	Alternator	28V/35A
	Starter	4.5Kw
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Oil Tank	120L fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Water Tank Truck Introduction

Our company offers a variety of sprinklers as small as 1.5 tons and as large as 30 tons to meet the needs of different users. Our company's sprinkler products are reasonable in design, beautiful in appearance, large in liquid carrying capacity, and have many functions such as road scouring, road sprinkling, emergency fire fighting, strong scouring, and self-flow irrigation.

They are suitable for urban landscaping, sanitation and other professional departments as well as highways and institutions. Comprehensive use of large and medium-sized enterprises and institutions such as schools, factories and mines

Main Structure and Working Principle

Sprinklers (for example, large-tonnage sprinklers) are mainly made up of automobile chassis, tank body, power take-off and transmission system, waterway system, pneumatic system

Tanker Body

The tank body is a metal atmospheric pressure tank body, which mainly has a carbon steel tank and a stainless steel tank, and the carbon steel tank body is treated with anti-corrosion treatment.

The tank has two elliptical and square circles (rectangular arcs). The head is automatically rotated by a CNC rotary machine, which has a beautiful appearance and high strength after molding. The barrel body is made of longitudinal seam butt joints, fully automatic gas shielded welding, and the whole coil is formed after the board is formed. The shape is beautiful and the straightness is good. The barrel and the head are fully welded and butt welded.

The inside of the tank is equipped with a wave-proof plate, and some of the tanks are provided with a longitudinal wave-proof plate to reduce the impact of the liquid in the tank on the head and the barrel.

A sedimentation tank and a sewage outlet are arranged at the bottom of the tank body, and the sewage outlet is opened irregularly according to the situation, and the accumulated dirt in the sedimentation tank is released.

Water system

The waterway system mainly consists of a water pump, a front water spray, a high-spray spray gun, a rear sprinkler, a pressure drain, and a self-flowing drain device.
