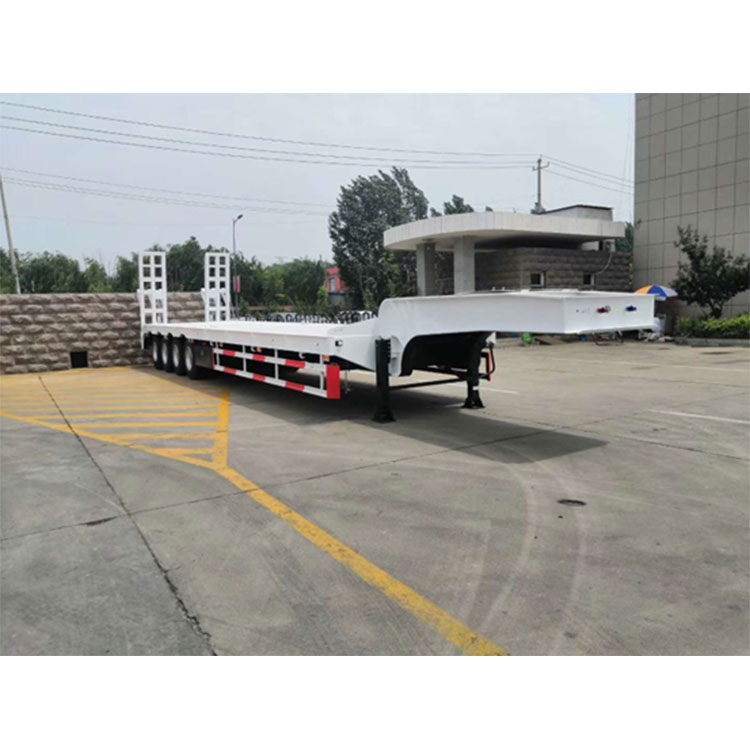

Four Axle Low Bed Semi Trailer 100T

The most highly acclaimed four axle low bed semi-trailer 100t is a spare part from a world-renowned brand, ensuring high quality and cost savings.

Send Inquiry

Product Description

Advantages:

1. The main beam is made of HG high-strength steel, which has strong bearing capacity.

2. The side beams are made of "H" steel, and the durable design avoids deformation of the side beams.

3. The loading ramp is made of high-strength steel, with high load-bearing capacity, and will not deform when handling heavy equipment.

4. Polyurethane paint has a long service life and prevents rusting of vehicles.

Product Parameter

FOUR AXLE LOW-BED SEMI TRAILER SPECIFICATIONS
Weight
Total gross weight approx.		128000kg
Dead weight approx.		18000kg
Payload approx.		110000kg
Dimensions
Total length outside approx.		16000mm
Total width outside approx.		3500+500mm
Total height outside approx.		3500mm
Total length of platform approx.		14500mm
Total width of platform approx.		3500+500mm
Total height of platform approx.		1350mm
Chassis (I beam)	Top flange plate		Material and thickness	Q345B 25mm
	Bottom flange plate		Material and thickness	Q345B 25mm
	Middle flange plate		Material	Q345B
			Thickness	Double16 mm
			Height	550mm
	Side beam height		Type	U steel
				Bending parts
			Height	300# U steel
Ladder	Type		Mechanical
	Width		650mm
Board height	1400mm		(from the top of floor to the ground )
Floor	Material		Carbon steel Q235
	Thickness		5mm
	Floor type		Checkered plate
Running mechanism	Container twist lock		No
	Axle		Brand	China
			Type	20t
			Number	4pcs
	Rim		Type	9.0
			Number	16 pcs
	Tire		Brand	chinese brand
			Type	315/80R22.5
			Number	16pcs
	Suspension		Mechanical suspension
	Spring leaf		Leaf width	100mm
			Leaf thickness	16mm
			Layer/set	10 Layer
	King pin		Type	Bolts type
			Diameter	3.5 inch
	Brake system		Air tank	45L air tanks
			Brake chamber	6 double spring brake chamber
			ABS	Without
	Landing gear		Brand	JOST
			Type	E100 two speed
Accessories	Spare tire carrier		ONE
	Light		LED light
	Voltage		24v
	Receptacle		7 ways(7wire harness)and quick change type
	Tool box		One piece
	Painting		Polyurethane paint&anti-rust primer&sand blasting
Tools for trailer	Head wrench ;spare wheel crank ; one fire extinguisher; Operation Manual
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Our factory directly produces all kinds of high quality semi trailers.

Flatbed trailer, flatbed semitrailer, 40 foot flatbed trailer, cargo trailer, sidewall trailer, truck trailer, semitrailer, trailer, container trailer, flatbed container trailer, tipper semitrailer, dump truck, platform trailer, tractor, transport vehicle, trailer, bulk cement trailer, bulk cement tanker, concrete mixer

Product Characteristics:

Standard Type

Low load bearing surface,low transport gravity center of cargo,and low transport and repair costs.

1,High bearing capacity

2,Lower bearing surface

3,Applicable scope

Show details

1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.

5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.
