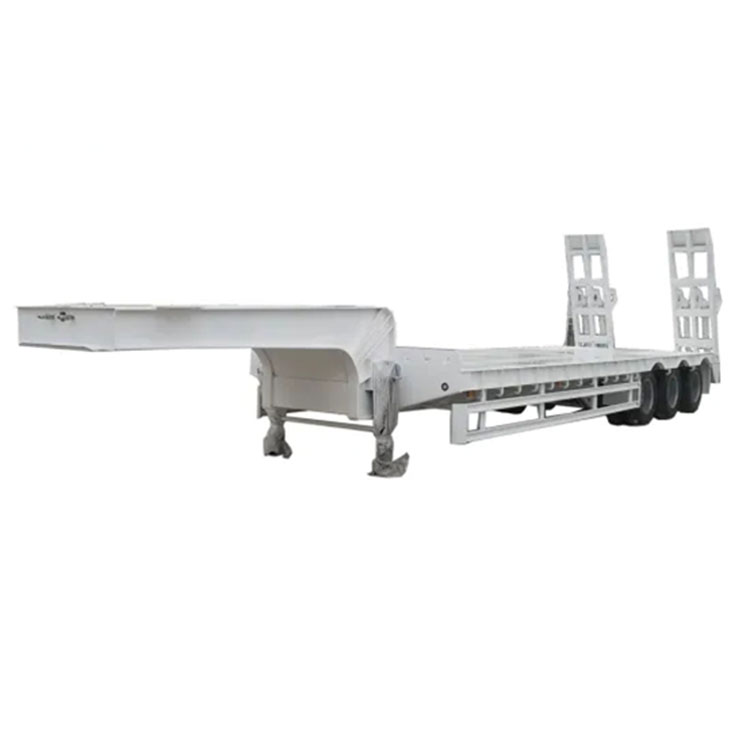

Three Axle Low Bed Semi Trailer

The most acclaimed three axle low bed semi-trailer is an important transportation tool widely used in fields such as cargo transportation, performance activities, and emergency rescue. Its strong stability, high load capacity, and versatility make it an indispensable part of various industries.

Send Inquiry

Product Description

Basic characteristics of a three axle low chassis semi-trailer:

The three axle low chassis semi-trailer adopts a flat structure design, with a lower bottom of the carriage for easy loading and unloading of goods.The wheels of this model rely on three axles to support weight, effectively improving the stability and load capacity of the entire vehicle.At the same time, it is equipped with a high-strength chassis and an adjustable suspension system, making driving smoother and safer under different road conditions.

Product Parameter

THREE AXLE LOW-BED SEMI TRAILER SPECIFICATIONS
Weight
Total gross weight approx.	70000kg
Dead weight approx.	10000kg
Payload approx.	60000kg
Dimensions
Total length outside approx.	13000mm
Total width outside approx.	3000mm
Total height outside approx.	1710mm( adjustable according to the height of king pin plate)
Total length of platform approx.	9505mm
Total width of platform approx.	3000mm
Total height of platform approx.	1080mm
Chassis
Main bean	Material: Q345B carbon steel; Type: gooseneck type; Height: 500mm; Upper plate: 18mm； Bottom plate: 18mm Double Middle plate: 12mm Process: welded by automatic submerged-acr
Cross member	12#C type or AB type
Side rail	250# "工" type
king pin	3.5"
Platform
Platform	Q235, checkered plate, 4mm,
Hole / lashing	12pcs per side,24pcs in total
Hook	9pcs per side,18pcs in total
Running System
axle	Capacity: 13T / axle3 units
suspension	Mechanical suspension with beam equaliser; Spring size: 90mm*16mm; Spring QTY: 10+10+10
tyres	Brand：Chengshan Type:8.25R20 Double mounted; QTY: 12PCS
wheel	20*8.5, 12pcs
Landing legs	28T total Lifting capacity and 50T static capacity,two speeds, two-sides operation
Brake system	Type: Dual line braking system Brake air chamber: 6 in total, T30/304 + T302 Air tank: 40L*2 unit ABS: none
Accessories
Rear Loading Ramps	2 units. spring loaded & manually operated with safety chain
Tool Box	1 pc
Spare Wheel Bracket	1 pcs
Electric system	24V LED light; waterproof wire; 7 ways (7 wire harness);Tail lamp with turn signal & brake light & side lamp & reflector etc.
Protectors	Mudguard;Mid & Rear Side protection;
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Heavy Type

High configuration determines high bearing capacity for transport of medium and heavy cargos.

High quality realizes the trouble-free throughout the whole transport.

High benefit is beyond your expectation.

1,Lower bearing surface

2,High bearing capacity

3,New ladder

Show details

1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.

5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.

The three axle low bed semi-trailer can be modified as needed, suitable for various transportation needs and special occasions, with high adaptability and flexibility.
