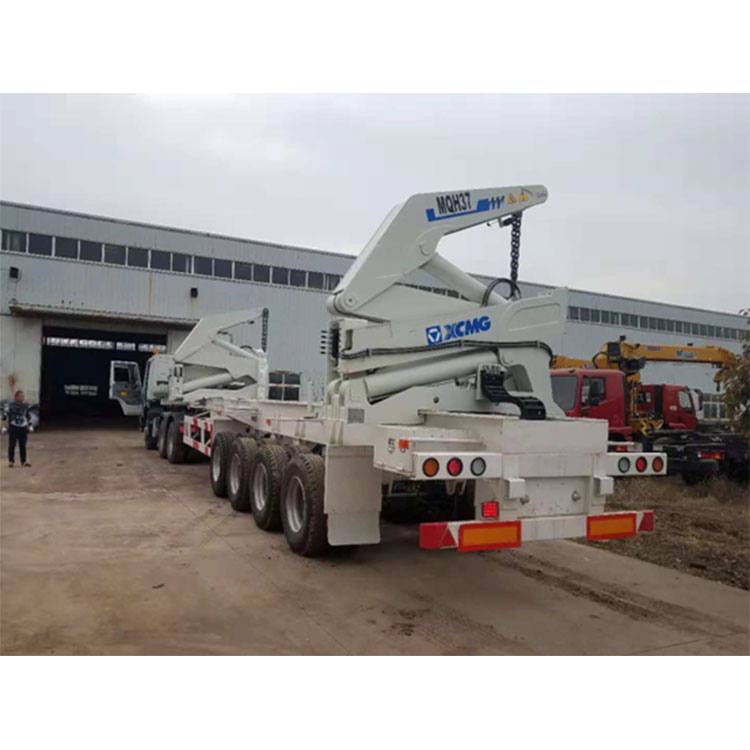

Four Axle Side Lifter Crane Semi Trailer with Engine

Four Axle Side Lifter Crane Semi-Trailer
Overall Size:1420025504000mm
Axles: FUWA Brand:13Ton4axles
(Front axle canbe liftable)
Tire:12.0R20 16pcs
XCMG brand MQH37A
Tare weight :15300kg

Send Inquiry

Product Description

The four axle side lifter crane semi-trailer in 2024 has stable driving performance and can maintain smooth driving and operation in different road conditions and environments.

Product Parameter

FOUR AXLE CONTAINER SELF-LOADING SEMI TRAILER
Tare weight	15300kg
Overall Size	1420025504000mm
Sidelifter crane	XCMG brand MQH37A; Overall size:H 2490mmW 2500mmL 1020mm; Max.lifting capacity 37000kg; Max.stabilliser outreach 3200mm; Max.working range 4000mm; Max.pressure of hydraulic system 28Mpa.
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm;Bottom flange 20mm;Middle Flange 12mm. Height 500mm;
Axle	FUWA brand 13Ton*4axles(Front axle canbe liftable)
Suspension	Mechanical suspension and front axle with air suspension
Leaf spring	Leaf spring 10/10/10 +Air bag
Tire	12.00R20 *16pcs
Wheel rim	8.5-20*16pcs
Kingpin	3.5” king pin
Landing gear	28Ton two-speed, manual operating ,heavy duty landing gear
Twist lock	4units
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Without
Electrical	Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type, Tail lamp with turn signal, brake light & reflector, One set 6-core standard Cable
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Wax spray.
Accessories	One tool box 2000mm、one spare tire carrier、one crank、one shaft head wrench、
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Main Features

Container Flatbed Semi Trailers, offer the container trailers to maximize the payload. Our flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.

Our Container flatbed trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

Introduction of production process

A.Steel auto cutting

B.Main beam auto submerged arc welding

C.Chassis reversal ensure every part been welding well

D.Shot blasting for rust cleaning

E.F.Welding by experienced worker

G.Final cleaning welding slag by worker

H.Dust-free painting line

Our flatbed truck semi trailer with multi-function , It's designed to carry long log , tube , 20ft 40ft container or bulk cargo. Our flatbed trailer can be match with SHACMAN , HOWO , FAW , BENZ , VOLVO , HINO , MAN and other brand tractor truck well. In this case , our truck semi trailer makes the transportation much more flexible .
