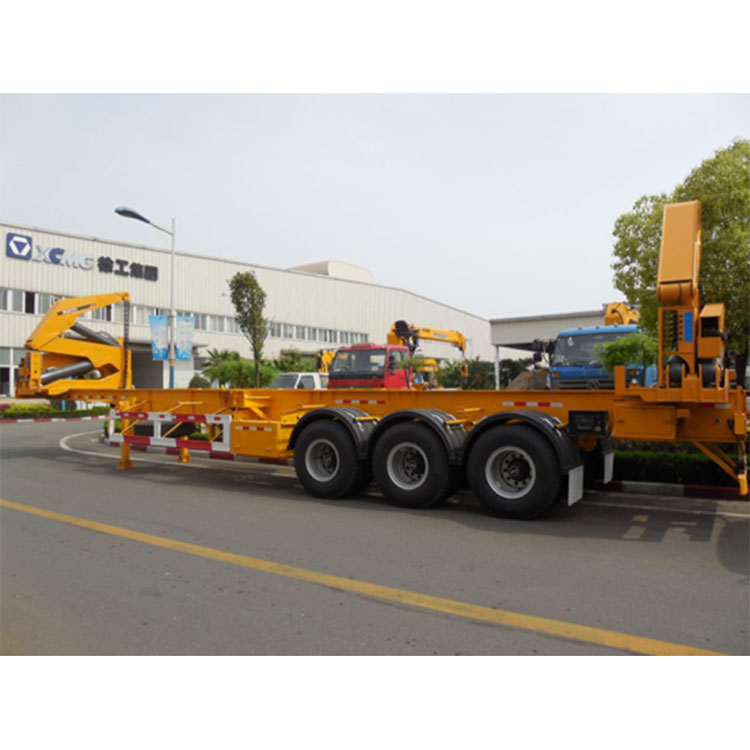

Three Axle Side Lifter Crane Semi Trailer

THREE AXLE CONTAINER SELF-LOADING SEMI TRAILER SPECIFICATIONS

Tare weight

14600kg

Overall Size

14000*2550*4000mm

Sidelifter crane

XCMG brand MQH37A;

Overall size:H 2490mm*W 2500mm*L 1020mm;

Max.lifting capacity 37000kg;

Max.stabilliser outreach 3200mm;

Max.working range 4000mm;

Max.pressure of hydraulic system 28Mpa.

Engine specification：

Motor manufacture：Kubota Corporation ,Japan

engine Model：V2403-M-DI-E3B-CSL-1

Total Displacement：2.434L

Brake Horse Power：36.5kW/2600rpm

Max. Torque/Speed：158.6N •m/1600rpm

Min. Idling Speed：1050~1150rpm

Max. Idling Speed：2820 rpm（Bare）

Dry Weight：185kg

Power Voltage：12V

Main beam

Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm;Bottom flange 20mm;Middle Flange 12mm. Height 500mm;

Axle

FUWA brand  13Ton*3axles

Suspension

Mechanical suspension and front axle with air suspension

Leaf spring

Leaf spring 10/10/10

Tire

12.00R20 *12pcs

Wheel rim

8.5-20*12pcs

Kingpin

3.5” king pin

Landing gear

28Ton two-speed, manual operating ,heavy duty landing gear

Twist lock

4units

Braking system

RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

ABS

Without

Electrical

Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type, Tail lamp with turn signal, brake light & reflector, One set 6-core standard Cable

Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Wax spray.

Accessories

One tool box 2000mm、one spare tire carrier、one crank、one shaft head wrench、

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
