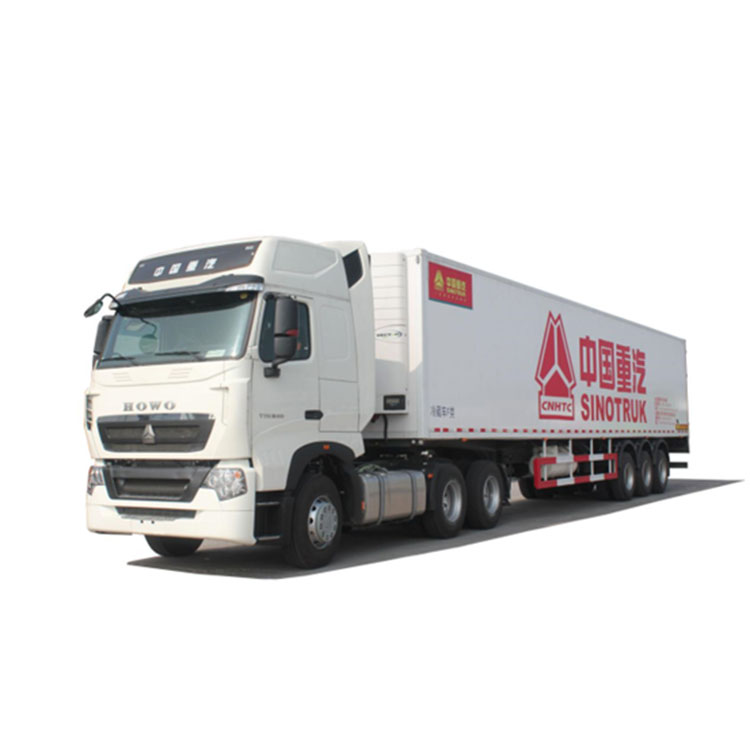

Three Axle Refrigerated Semi Trailer

THREE AXLE REFRIGERATED SEMI TRAILER

DIMENSIONS & WEIGHT

Vehicle Dimensions

13800*2550*4000mm

Box Dimensions

13000*2330*2200mm

Tare Weight

Approx.8500kg

Load capacity

Approx 45000kg

BOX DESCRIPTION

Volume

Approx 60m3

Material & Thickness

GRP inside & outside of the van, polyurethane as the insulation.& 80mm

Door

One Side Door and Rear door

Main Manufacture Technology

Freon-free polyurethane and GRP material
All-close panel, adhesive structure with the type of building block,
Freon-free polyurethane vesicant material is our innovation,
which are very different from traditional open sandwich panel with connect by metals,
injected polyurethane at site with Freon.
At last, finish the production by heating,
vacuum and pressure using special equipment.

Other

Stainless steel of The main characters,high strength,light in weight,anti-corrosion,non-pollution,easy repair long life,excellent,insulation

SPECIFICATION

Chassis

Stringer height of 500mm, up / down flap14mm/16mm web 6mm;
back plane; border 16 #channel steel, square tube runs through the beam;

Axle

3 axles

FUWA 13 T Optional BPW

Suspension

Mechanic suspension with 10-piece leaf spring.

King Pin

2'' or 3.5''

Landing Gear

Two Speed, Manually operated

Wheel Rim

8.5*20,12 pieces

Tyre

12.00R20 Radial tire , 12 pieces

Spare Tire Rack

one

Braking System

T30/30 Spring brake chamber; 40L air tanks with WABCO air controlled system.

Light & wire

LED Combination Rear Lights, and LED Side lights. wire and 7-pin socket

REFRIGERATING UNIT DESCRIPTION

Brand

Thermo King

Model

SlXE-400

Temperature Range

-18ºC Temperature can be controlled

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
