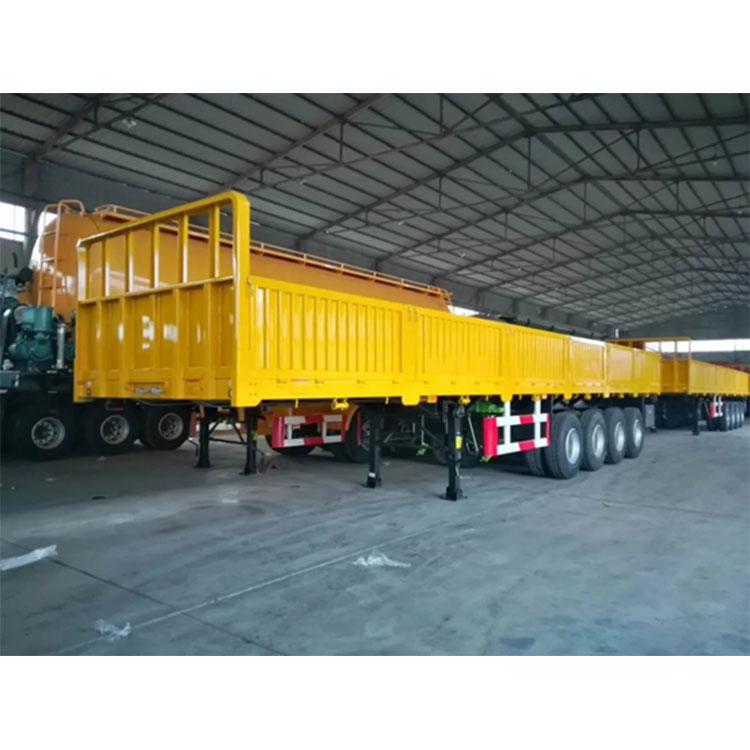

Four Axle Sidewall Semi Trailer

Four Axle Sidewall Semi Trailer Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm.

Send Inquiry

Product Description

SINOCTM is a specialilized heavy haul trailer manufacturer in China, SINOCTM semi trailers has successfully entered into over 50 countries around the world, such as Ethiopia, Malawi, Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan, Kenya, Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.

Product Parameter

Four Axle Sidewall Semi-Trailer
Tare weight	8300kg
Size	13000mm2650mm2860mm
Payload	60T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	16#/18# channel steel(Q235)
Cross member	10#/w shape channel steel(Q235)
Floor	3mm checkered plate
Side wall	height 600mm thickness 1.5-2.5mm
Front board	1500mm
Axle	4 axle FUWA brand 13T
Suspension	American type suspension
Leaf spring	10pcs13mm90mm
Tire	12R22.5 double star brand 16pcs
Wheel rim	9.0-22.5 jingu brand 16pcs
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	12pcs
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

SINOCTM produces the high quality 4 Axles Flatbed Trailer with Side Wall for carrying 40ft container, 20ft container and bulk cargo. the 4 Axles Flatbed Trailer with Side Wall can carry loads from 40 ton to 60 ton machnies and cargos. The Side Wall Semi Trailer also called flatbed trailer with sidewalls. SINOCTM Side Wall Semi Trailer are noted for their highly robust structure steel, we can provide difference configurations of our flat bed semi trailer to meet your transportation requirement.
