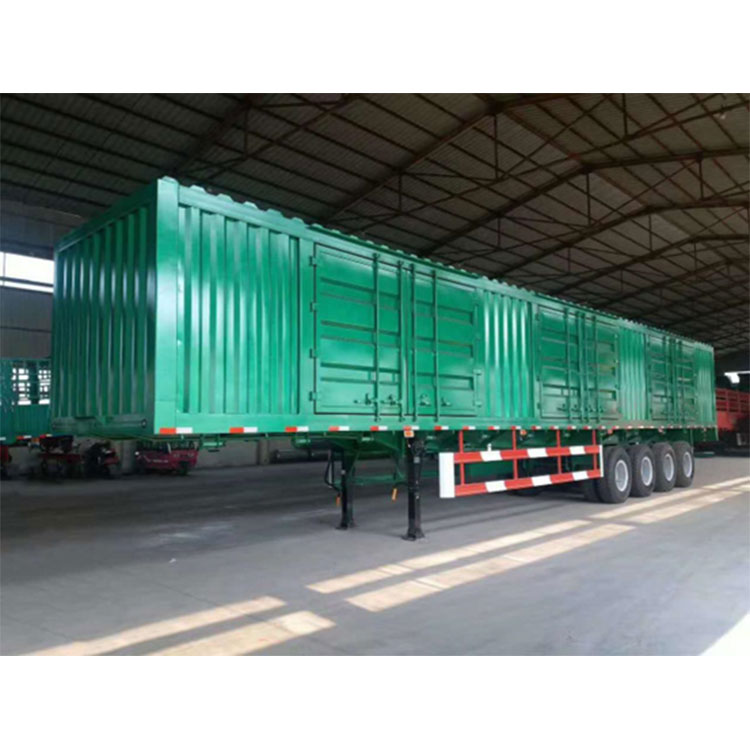

Four Axle Van Semi Trailer

Four Axle Van semi trailer
Size:1250025004000mm
Axles:13Ton 4axles
Tire:12.00R20 12pcs
Body Size:1250025002000mm
Tare Weight:9500kg
Payload:65000kg

Send Inquiry

Product Description

The most acclaimed four axle van semi-trailer is a transport semi-trailer suitable for household appliances, light textile goods, coal, sand and other building materials, as well as graphic goods.

Product Parameter

FOUR AXLES VAN SEMI TRAILER
PARAMETERS
Tare weight	9500kg
Overall Size	12500mm2500mm4000mm
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Upper flange 14mm; Bottom flange16mm; Middle Flange 8mm; Height 500mm;
Side beam	16# channel steel(C-steel)
Cross member	10# channel steel(C-steel)
Floor	3mm plate
Side wall	Height 2000mm, thickness 1.5mm. Door 2sets per side.
Front board	Height 2000mm, thickness 1.5mm
Axle	FUWA brand 13T *4 axles ,front axle canbe lift
Suspension	One air suespension with first alxe lifting ,3-axle mechanical suspension Mechanical suspension
Tyre	12.00R20 *17units (Inculde one spare tyre)
Wheel rim	8.5-20 *17pcs
Kingpin	2"/3.5” bolt-in kingpin
Landing gear	28T two-speed, manual operating
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .
ABS	Without
Electrical system	Voltage 24V, Receptacle 7 ways (7 wire harness),LED lights,One set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint;Wax spray.
Color	As clients order
Accessories	One standard tool box.One spare wheel carrier chained mode.One crank.One shaft head wrench.
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Descriptions: Box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities. The interior part adopts a skeletonless structure, maximizing the carrying capacity. X-shape tension brace fixed the box shell a very strong unit.

The side guard adopts close-ended design to reduce the crosswise risks effectively, and energy consumption, running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.

Features:

1. Strong bearing capacity

Box type semi-trailers have strong load-bearing capacity, high safety factor, reasonable design, durability, and advanced manufacturing technology. The frame adopts a through beam structure, with straight or gooseneck longitudinal beams and web heights ranging from 400 to 550. The longitudinal beams are automatically submerged welded, and the frame is shot blasted. The crossbeam is penetrated into the longitudinal beams and welded as a whole. These measures make the box type semi-trailer have stronger bearing capacity.

2. Reasonable design

The body of the box type semi-trailer adopts a frameless structure, made of high-strength cold-rolled corrugated steel plates, and the internal structure adopts X-shaped braces, which have the characteristics of multi pull, heavy load, and light self weight. It has a large loading space and uses high-strength X-shaped braces, which have better load-bearing effects. Reasonable distribution within the cabin can meet the diverse and personalized requirements of users.

3. Suspension support

The box type semi-trailer is composed of series steel plate springs and suspension supports, with a reasonable structure and strong stiffness and hardness. Used to support loads, mitigate impacts, and ensure a smoother vehicle body.

4. Side protection design

The box transport semi-trailer adopts a closed side protection design, effectively reducing the lateral risk of the vehicle during high-speed driving and reducing energy consumption. The rear protection design has reasonable cart accessories for easy operationMeanwhile, box type semi-trailers can also be customized according to the actual needs of users. For example, different design structures such as closed, push-pull open, open, and open instead of tarpaulin pole can be used to meet the different transportation needs of users.
